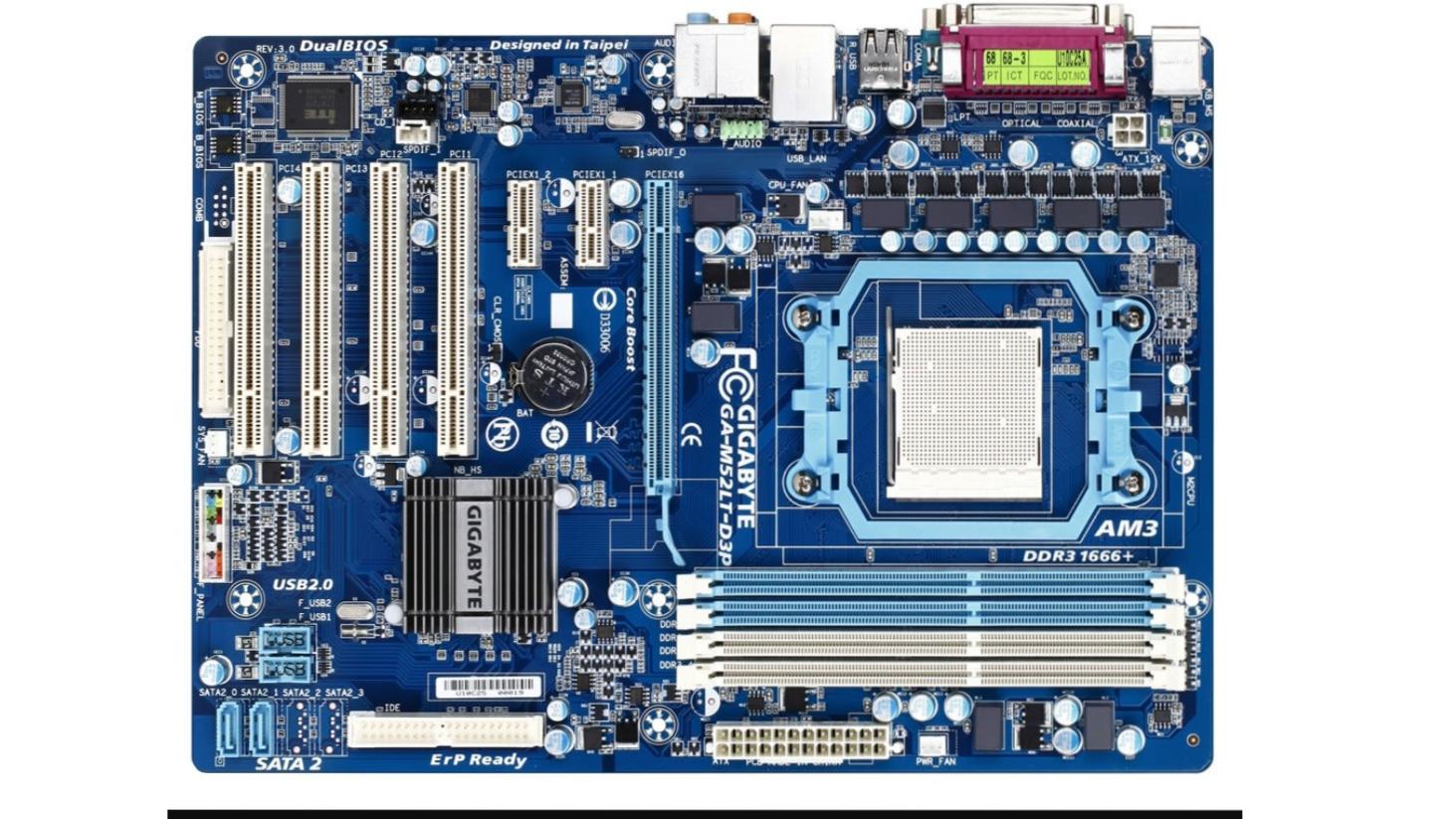

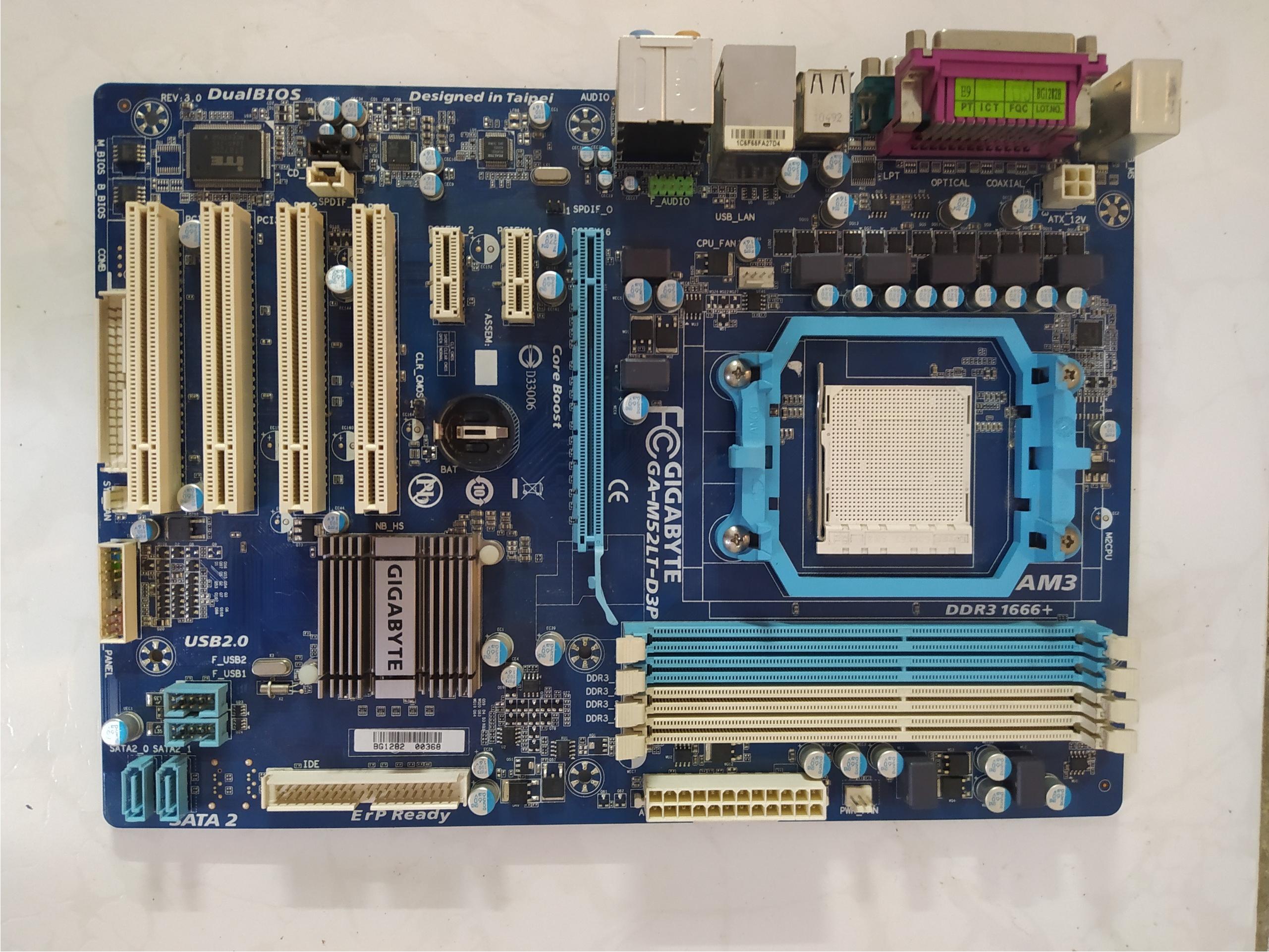

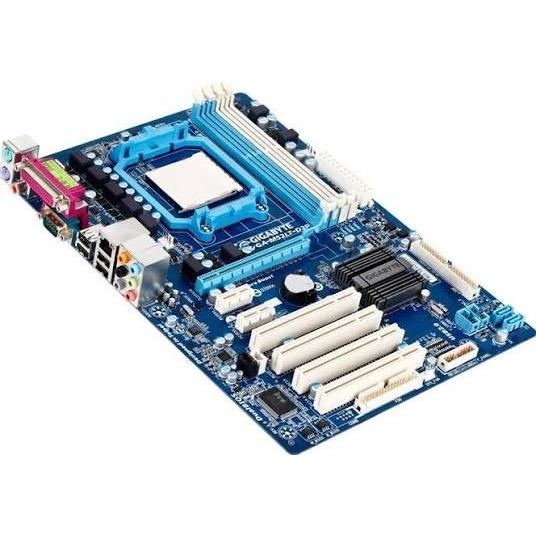

مادربرد حرفه ای AM3 DDR3 گیگابایت

اطلاعات بیشتر

CPU



1. Support for Socket AM3 processors: AMD Phenom II processor / AMD Athlon II processor

Hyper Transport Bus



1. 2000 MT/s

Chipset



1. NVIDIA nForce 520LE chipset

Memory



1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 1666(OC)/1333/1066 MHz memory modules

Audio



1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

LAN



1. RTL 8201EL chip (10/100 Mbit)

Expansion Slots



1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slot
3. 4 x PCI slots

Storage Interface



Integrated in the chipset:


1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 2 x SATA 3Gb/s connectors supporting up to 2 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1

iTE IT8720 chip:


1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB



Integrated in the chipset


1. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors



1. 1 x 24-pin ATX power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 2 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In header
13. 1 x S/PDIF Out header
14. 2 x USB 2.0/1.1 headers
15. 1 x clearing CMOS jumper

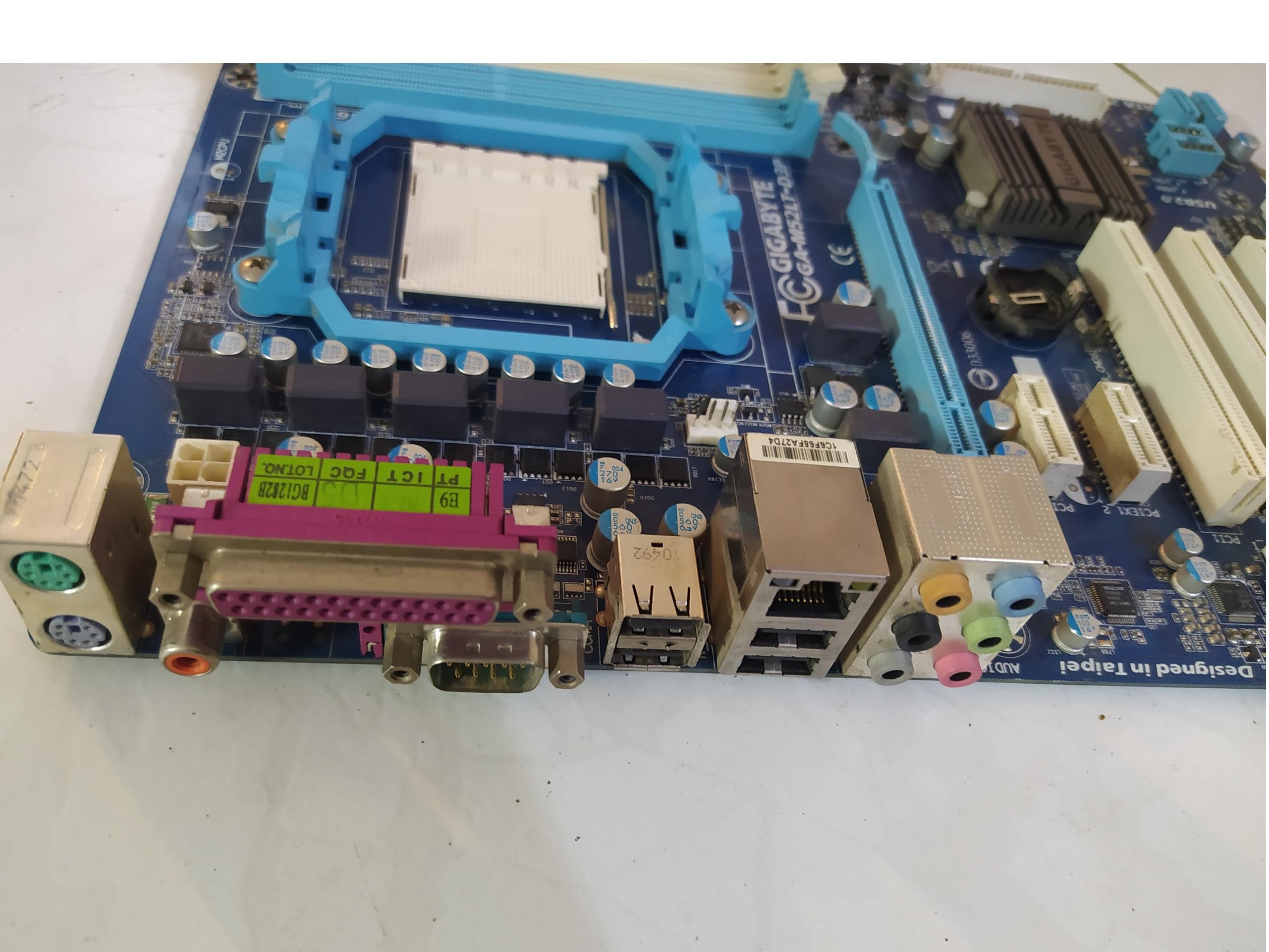

Back Panel Connectors



1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x serial port
5. 1 x coaxial S/PDIF Out
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone
