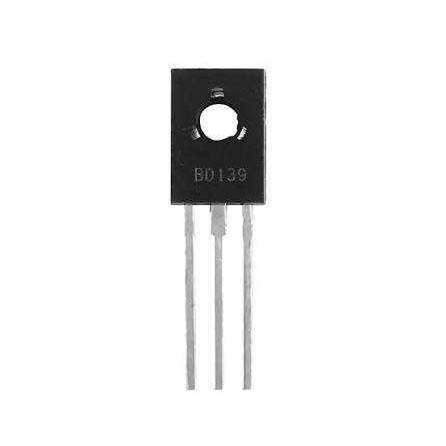

ترانزیستور BD139 نوع NPN

Q2006

Type Designator: BD139
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 12.5 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO-126
