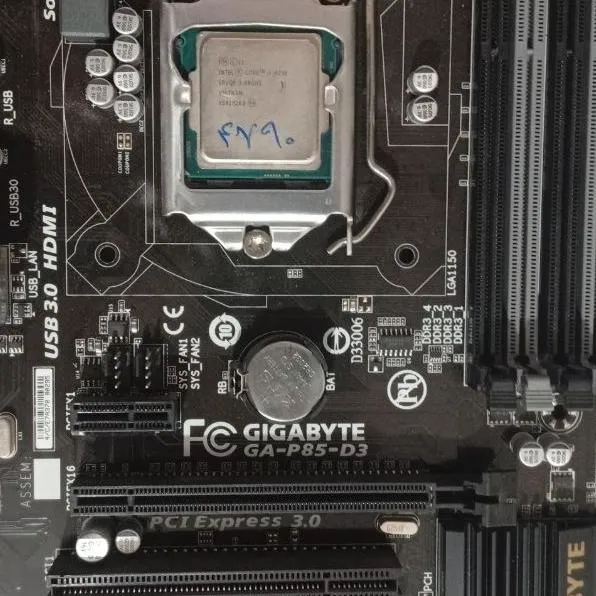

باندل نسل 4 مادربرد P85-D3 و پردازنده I7 4790
باندل
باندل

باندل نسل 4 مادربرد P85-D3 و پردازنده I7 4790

در حد نو
شماره کالا: 40228834

19٬500٬000 تومان

مشخصات کالا
توضیحات بیشتر

مشخصات کالا

رمندارد
سی پی یودارد
کارت گرافیکندارد
هاردندارد
فنندارد
نوع حافظهDDR3
شرکت سازنده سی پی یواینتل - Intel
تعداد هسته سی پی یو4
سوکت پردازندهLGA1150
شرکت سازنده مادربردگیگابایت - Gigabyte
جعبهندارد

توضیحات بیشتر

مادربرد سالم تمیز و کم کار کرد
لطفا بعد از تحویل با پاور مناسب تست شود
قبل از ارسال به اسم خریدار فیلم تست تهیه می شود

Class: Desktop

Socket: FCLGA1150

Clockspeed: 3.6 GHz

Turbo Speed: 4.0 GHz

Cores: 4 Threads: 8

Typical TDP: 84 W

Cache per CPU Package:
L1 Instruction Cache: 4 x 32 KB
L1 Data Cache: 4 x 32 KB
L2 Cache: 4 x 256 KB
L3 Cache: 8 MB



CPU

  1. Support for Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

  1. Intel® B85 Express Chipset

Memory

  1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 esam 24 Hz / 2560 x 1600 esam 60 Hz
    * Support for HDMI 1.4a version.
  2. Maximum shared memory of 1 GB

Audio

  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF In/Out

LAN

  1. Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x1 slot
    (PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
  4. 4 x PCI slots

Multi-Graphics Technology

  1. Support for AMD CrossFire technology

Storage Interface

Chipset:

  1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3)
  2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5)

USB

Chipset:

  1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 3 x system fan headers
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x S/PDIF In header
  11. 1 x USB 3.0/2.0 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x serial port header
  14. 1 x parallel port header
  15. 1 x Clear CMOS jumper

Back Panel Connectors

  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x serial port
  4. 1 x HDMI port
  5. 2 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

  1. iTE® I/O Controller Chip

H/W Monitoring

  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

  1. 2 x 64 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    esamBIOS
    EasyTune
    EZ Setup
    USB Blocker
    Smart TimeLock
    Smart Recovery 2
  4. Support for ON/OFF Charge

Bundled Software

  1. Norton® Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
  4. Intel® Small Business Advantage

Operating System

  1. Support for Windows 10/8.1/8/7

Form Factor

  1. ATX Form Factor 30.5cm x 20.0cm
