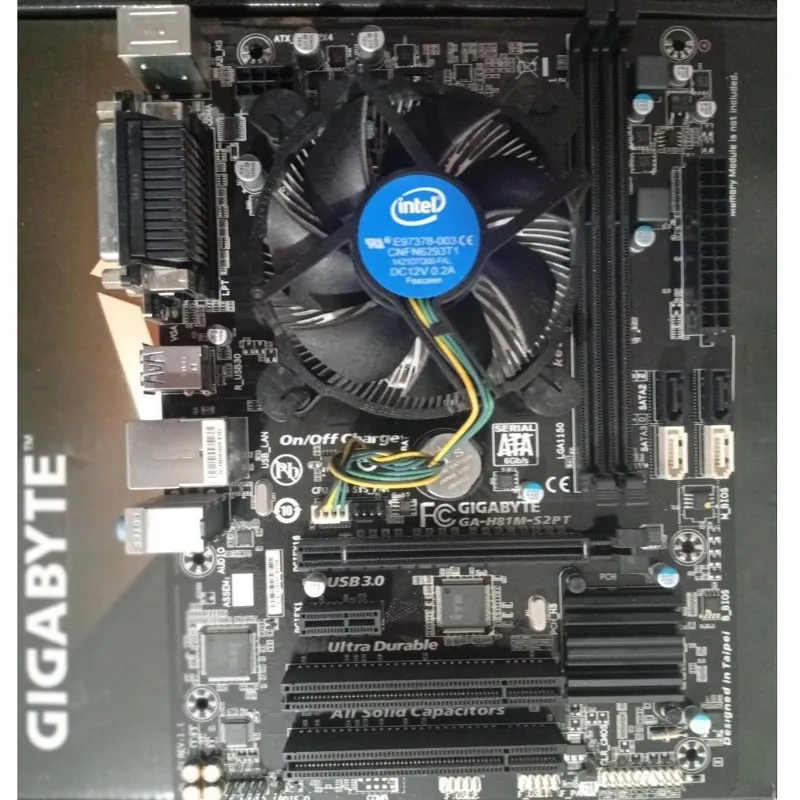

باندل نسل 4 مادربرد H81M-S2PT و پردازنده I5 4460

مادربرد سالم تمیز و کم کار کرد
لطفا بعد از تحویل با پاور مناسب تست شود
قبل از ارسال به اسم خریدار فیلم تست تهیه می شود

CPU

1. Support for Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel® H81 Express Chipset

Memory

1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. Maximum shared memory of 1 GB

Audio

1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

LAN

1. Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. 1 x PCI Express x1 slot
   (The PCI Express slots conform to PCI Express 2.0 standard.)
3. 2 x PCI slots

Storage Interface

Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
2. 2 x SATA 3Gb/s connectors (SATA2 2/3)

USB

Chipset:

1. 2 x USB 3.0/2.0 ports on the back panel
2. 6 x USB 2.0/1.1 ports (2 port on the back panel, 4 ports available through the internal USB header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan headers
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 2 x USB 2.0/1.1 headers
11. 1 x Clear CMOS jumper

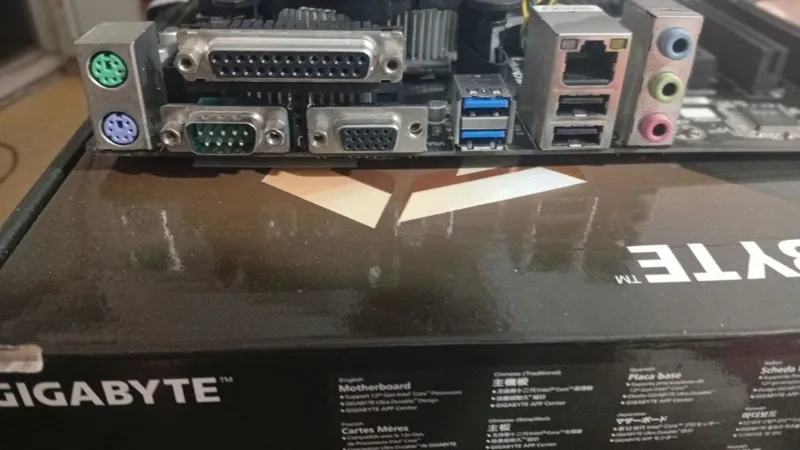

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 2 x USB 3.0/2.0 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 2 x 32 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for Q-Flash
2. Support for Xpress Install
3. Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   esamBIOS
   EasyTune
   EZ Setup
   USB Blocker
4. Support for ON/OFF Charge

Bundled Software

1. Norton® Internet Security (OEM version)

Operating System

1. Support for Windows 10/8.1/8/7

Form Factor

1. Micro ATX Form Factor 24.4cm x 18.0cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
