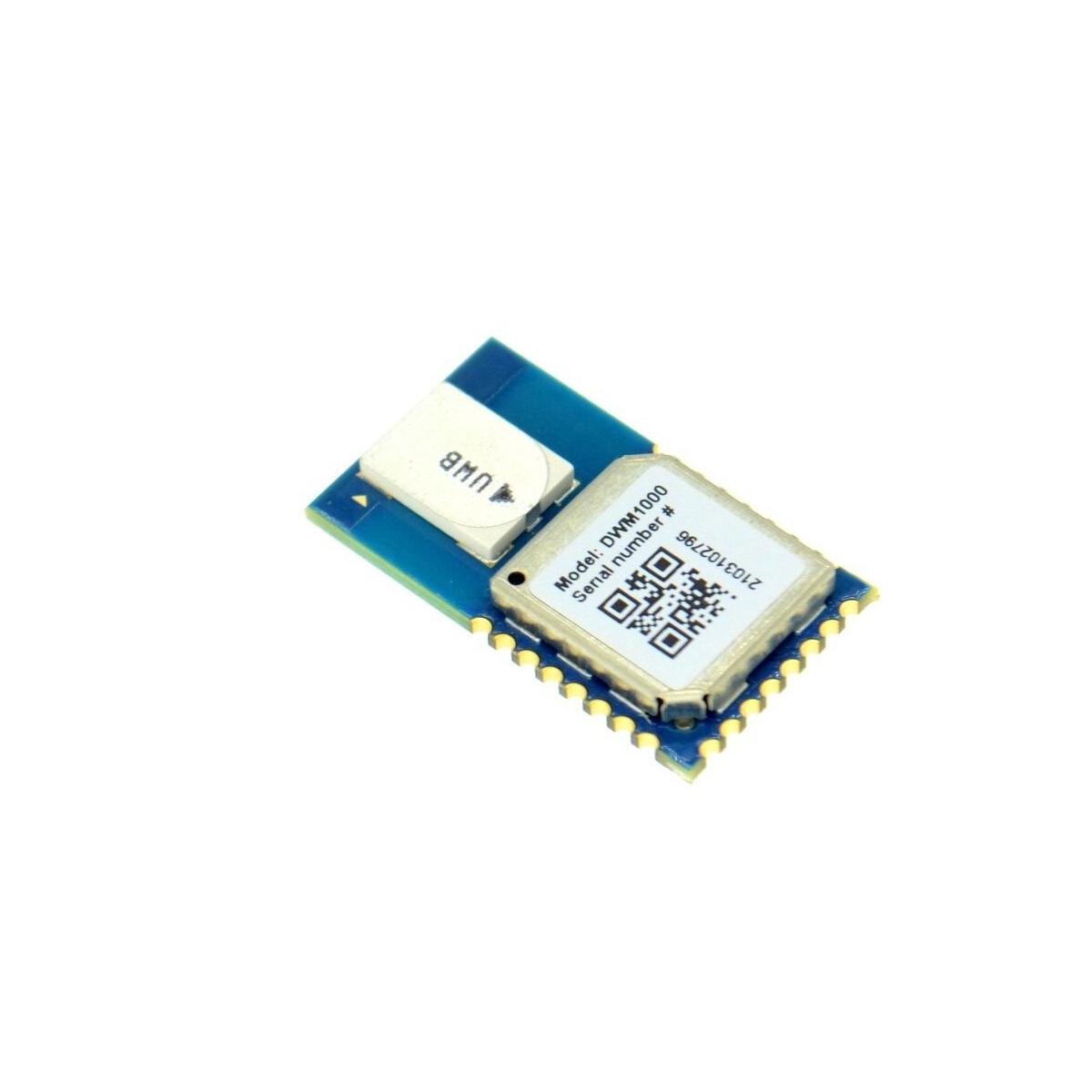

ماژول موقعیت یابی DWM1000

Description
The DWM1000 is an IEEE802.15.4-2011 UWB compliant wireless transceiver module based on Decawaves DW1000 IC. This module enables the location of objects in real time location systems (RTLS) to a precision of 10cm indoors, high data rate communications up to 6.8 Mbps, and excellent communications range of up to 300m thanks to coherent receiver techniques.

Features:
Integration of DW1000 IC, antenna, power management, and clock control simplifies design integration
Allows easy integration with wide range of MCUs
Supports 110kbps, 850kbps and 6.8Mbps data rates
Frequency of 3.5GHz 6.5GHz channel 1, 2, 3, 4, 5, 7
23mm x 13mm x 2.9mm 24-pin side castellations
Supports ToF and TDoA location schemes
