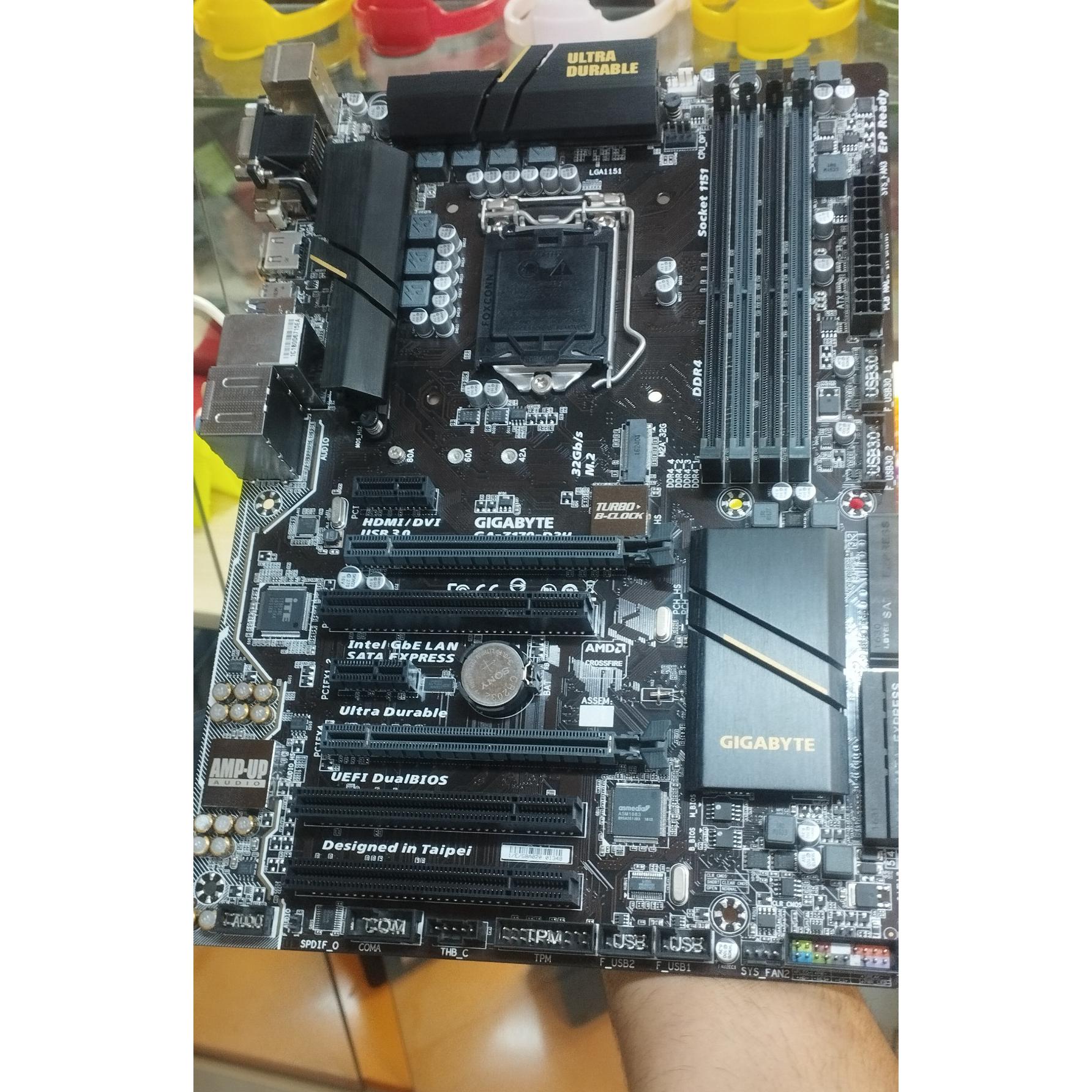

مادربورد گیگابایت Z170a

خبرها / جوایز







مشخصات

پردازنده

1. Support for 7th/6th Generation Intel® Core i7 processors/Intel® Core i5 processors/ Intel® Core i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
   * For 7th Generation Intel® Core processors support need to update the latest BIOS.
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

چیپ ست

1. Intel® Z170 Express Chipset

حافظه

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

گرافیک آنبرد

Integrated Graphics Processor-Intel® HD Graphics support

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200esam60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200esam60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160esam24 Hz
   * Support for HDMI 1.4 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 1024 MB

صوتی

1. Realtek® ALC1150 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

شبکه

1. Intel® GbE LAN chip (10/100/1000 Mbit)

سوکت های اضافه

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 3 x PCI slots

فن آوری چند گرافیکی

1. Support for 2-Way AMD CrossFire technology

رابط ذخیره سازی

Chipset:

1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 3 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.

USB

Chipset:

1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
3. 1 x USB Type-C port on the back panel, with USB 3.0 support

ŠŠ Chipset+GENESYS LOGIC USB 2.0 Hub:

1. 2 x USB 2.0/1.1 ports available through the internal USB header

رابط های ورودی/خروجی داخلی

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 3 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x water cooling fan header (CPU_OPT)
8. 3 x system fan headers
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x S/PDIF Out header
12. 2 x USB 3.0/2.0 headers
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header
15. 1 x Thunderbolt add-in card connector
16. 1 x serial port header
17. 1 x Clear CMOS jumper

رابط های پنل پشتی

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 1 x USB Type-C port, with USB 3.0 support
6. 4 x USB 3.0/2.0 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

کنترلر ورودی/خروجی

1. iTE® I/O Controller Chip

نظارت بر روی سخت افزار

1. System voltage detection
2. CPU/System temperature detection
3. CPU/CPU OPT/System fan speed detection
4. CPU/System overheating warning
5. CPU/CPU OPT/System fan fail warning
6. CPU/CPU OPT/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

بایوس

1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

ویژگی های خاص

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   esamBIOS
   Ambient LED
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

بسته نرم افزار

1. Norton® Internet Security (OEM version)
2. Intel® Smart Response Technology
3. cFosSpeed

سیستم عامل

1. Windows® 10 64-bit (for 7th Generation Intel® Processors)

2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
   * Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.

فاکتور فرم

1. ATX Form Factor 30.5cm x 21.4cm

Box Contents

1. GA-Z170-D3H motherboard
2. Two SATA cables
3. Motherboard driver disk
4. I/O Shield
5. Users Manual
6. One G Connector
