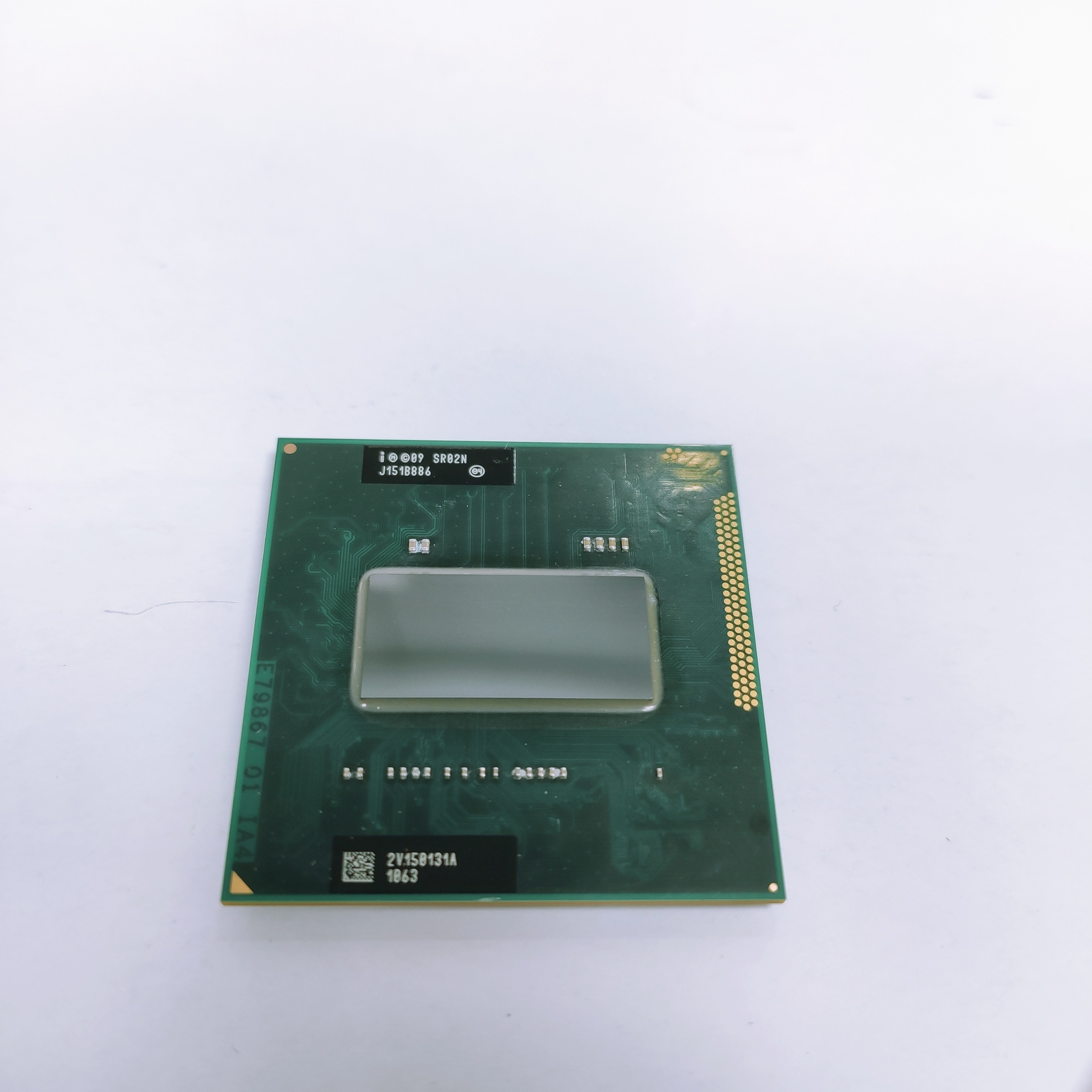

پردازنده لپ تاپ Intel Core i7-2670QM ( 8 رشته )

پردازنده لپ تاپ Intel Core i7-2670QM

(استوک اصلی)

از روی لپ تاپ کارکرده اصلی ایسر    برداشته شده .

این پردازنده معمولاً به سادگی قابل تعویض نیست در صورت عدم آشنایی با فرآیند تعویض ، نصب توسط تعمیرکار توصیه میشود.



مشخصات کلی پردازنده لپ تاپ Intel Core i7-2670QM

General information

Type

Market segment

Mobile

Family

Model number

CPU part number

• FF8062701065500 is an OEM/tray microprocessor

Frequency

2.2 GHz / 2200 MHz

Maximum turbo frequency

3.1 GHz / 3100 MHz

Bus speed

5 GT/s Direct Media Interface

Clock multiplier

22

Package

988-pin micro-PGA (rPGA988B)

Socket

Size

1.48" x 1.48" / 3.75cm x 3.75cm

Weight

0.2oz / 6.8g

Introduction date

Price at introduction

$378

S-spec numbers

Part number

Production processors

FF8062701065500

+

Architecture / Microarchitecture

Instruction set

x86

Microarchitecture

Sandy Bridge

Processor codename

Core stepping

D2

Manufacturing process

0.032 micron High-K metal gate process

Data

64 bit

The number of CPU cores

4

The number of threads

8

Floating Point Unit

Integrated

Level 1 cache size

4 x 32 KB instruction caches
4 x 32 KB data caches

Level 2 cache size

4 x 256 KB

Level 3 cache size

6 MB

Cache latency

3 (L1 cache)
9 (L2 cache)
21 (L3 cache)

Physical memory

16 GB

Multiprocessing

Uniprocessor

Extensions & Technologies

• MMX instructions
• SSE / Streaming SIMD Extensions
• SSE2 / Streaming SIMD Extensions 2
• SSE3 / Streaming SIMD Extensions 3
• SSSE3 / Supplemental Streaming SIMD Extensions 3
• SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
• AES / Advanced Encryption Standard instructions
• AVX / Advanced Vector Extensions
• EM64T / Extended Memory 64 technology / Intel 64
• HT / Hyper-Threading technology
• TBT 2.0 / Turbo Boost technology 2.0
• VT-x / Virtualization technology

Security Features

NX / XD / Execute disable bit

Low power features

Enhanced Intel SpeedStep technology

Integrated Graphics Processing Unit

GPU Type

HD 3000

Microarchitecture

Gen 6

Execution units

12

Base frequency (MHz)

650

Maximum frequency (MHz)

1100

Display controller

2 displays

Integrated peripherals / components

Memory controller

The number of controllers: 1
Memory channels (per controller): 2
Memory channels (total): 2
Supported memory: DDR3-1066, DDR3-1333

Other peripherals

• Direct Media Interface 2.0
• PCI Express 2.0 interface

Electrical / Thermal parameters

Maximum operating temperature

100°C

Thermal Design Power

45 Watt
