رادیو تک موج قدیمی Solid State SR-F 408

رادیو تک موج کوچک بسیار قدیمی

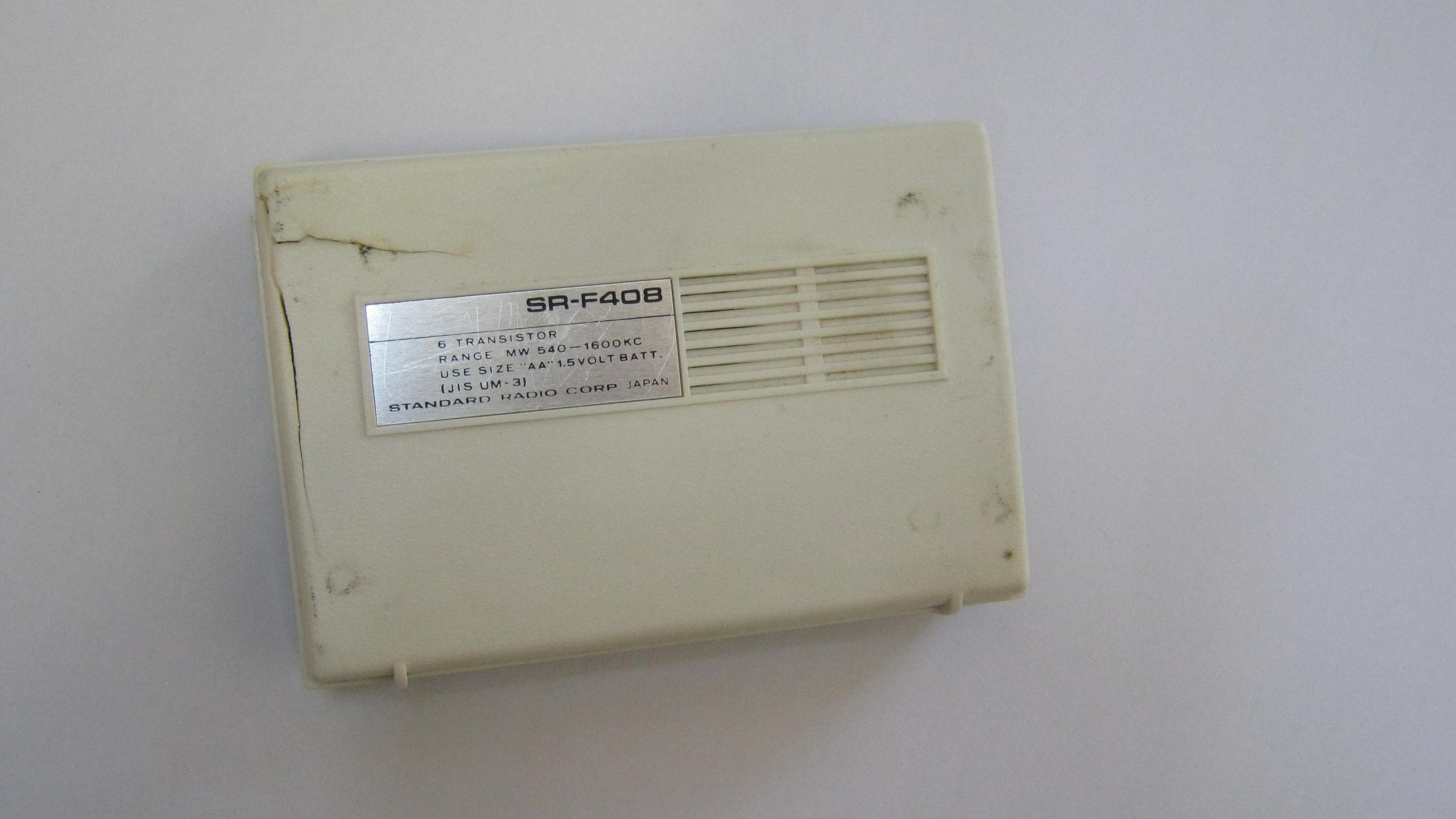

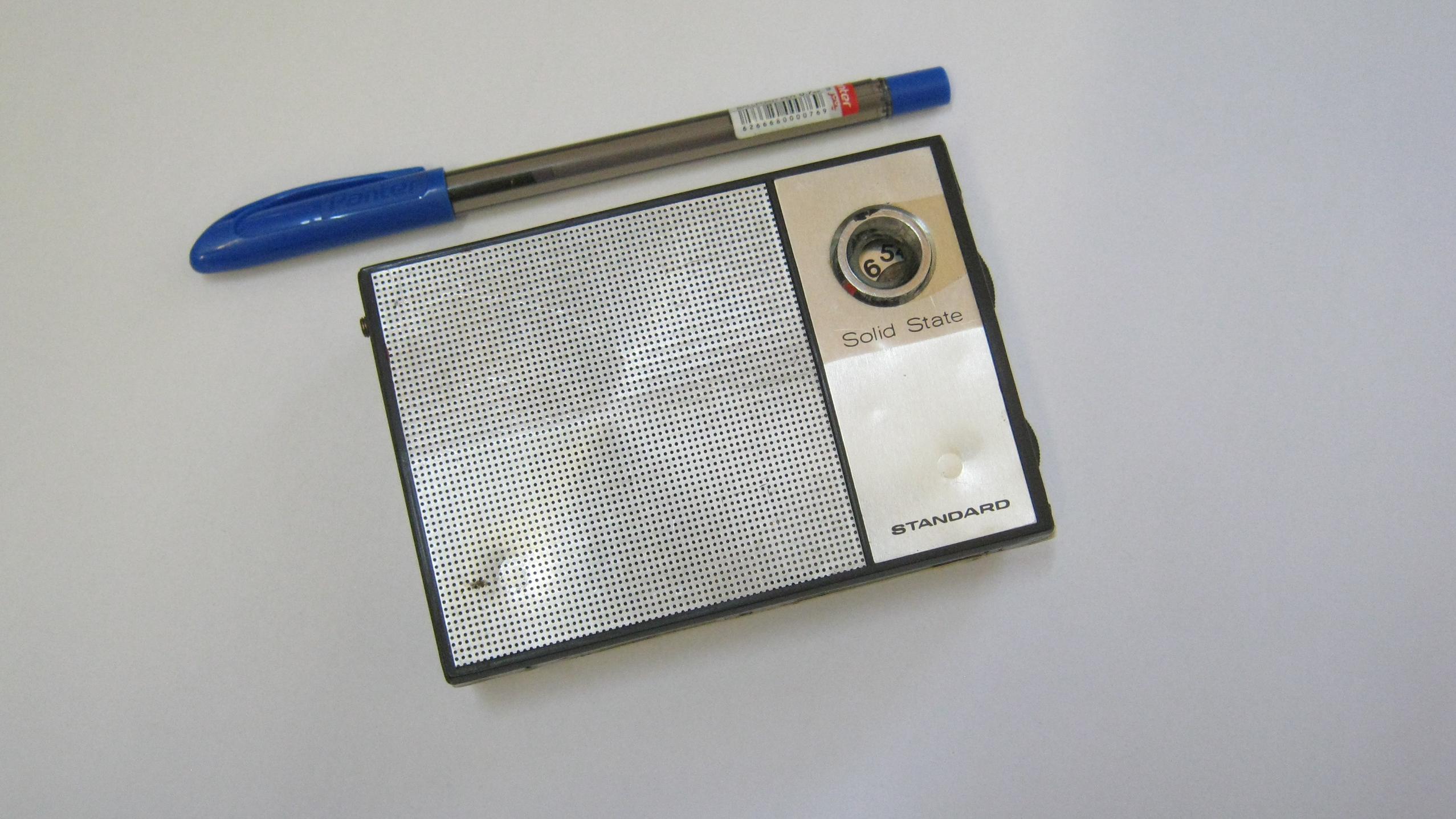

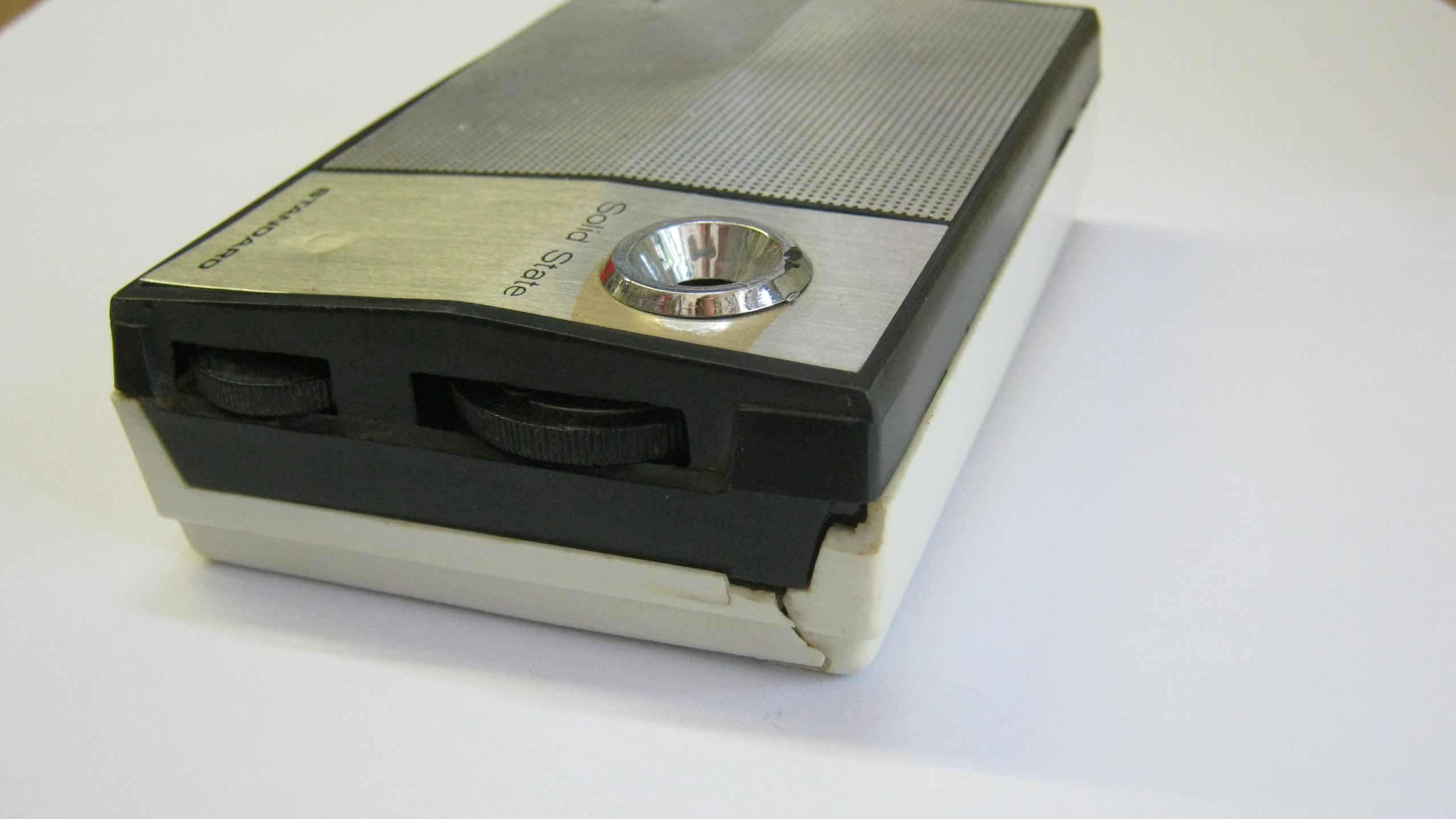

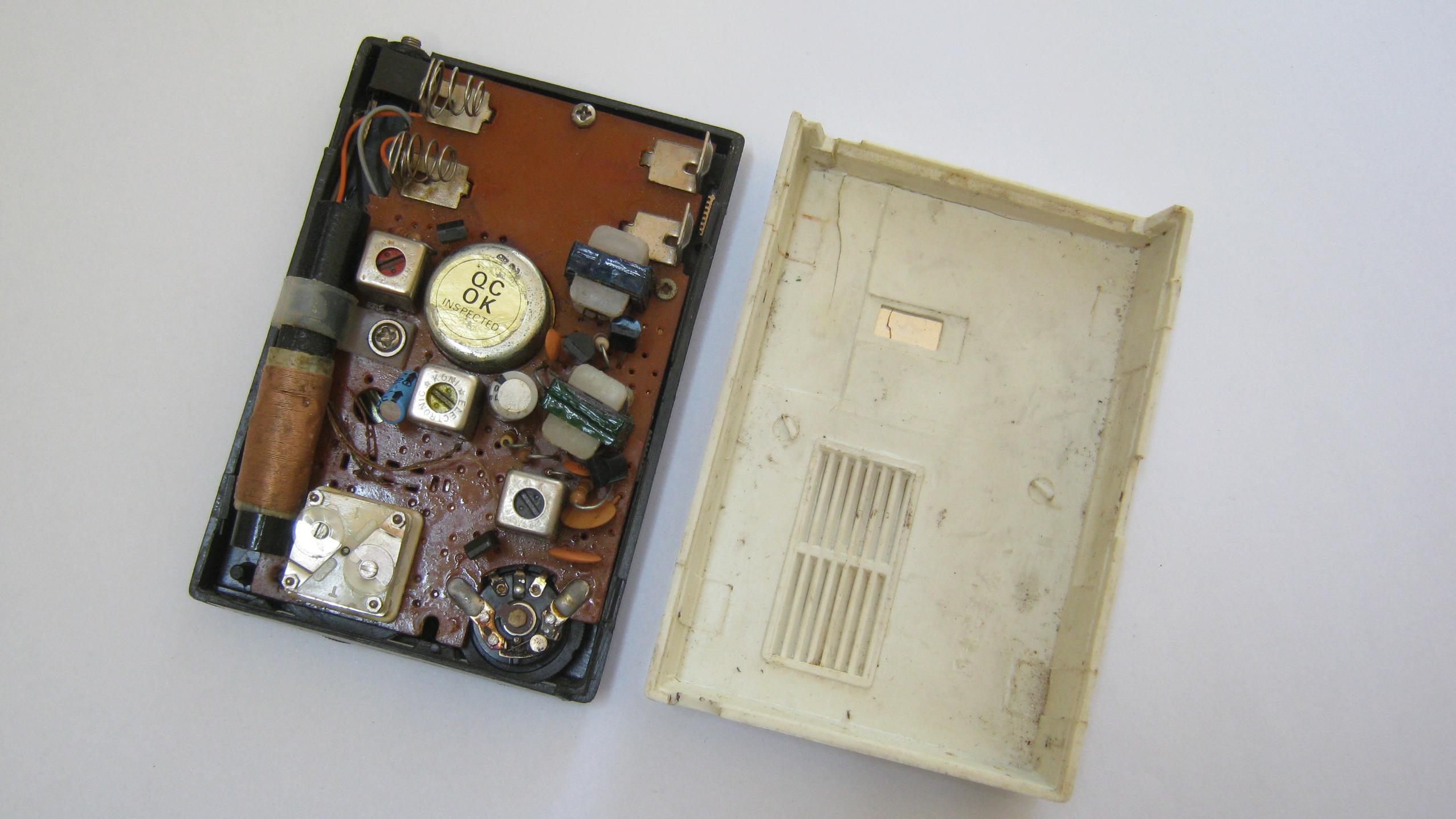

رادیو تک موج قدیمی Solid State SR-F 408

معیوب

مناسب دکور و ویترین و یا تعمیر کاران

مطابق تصویر ارسال می شود.

• Number of Transistors
• 6
• Semiconductors
•
• Main principle
• Superheterodyne (common) ZF/IF 455 kHz
• Wave bands
• Broadcast only (MW).
• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt
• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
• Power out
• 0.1 W (unknown quality)
• Material
• Plastics (no bakelite or catalin)
• from Radiomuseum.org
• Model: Solid State SR-F 408 Standard Radio Corp. SR, Tokyo
• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.
• Dimensions (WHD)
• 109 x 73 x 31 mm / 4.3 x 2.9 x 1.2 inch
• Notes

Standard SR-F408.

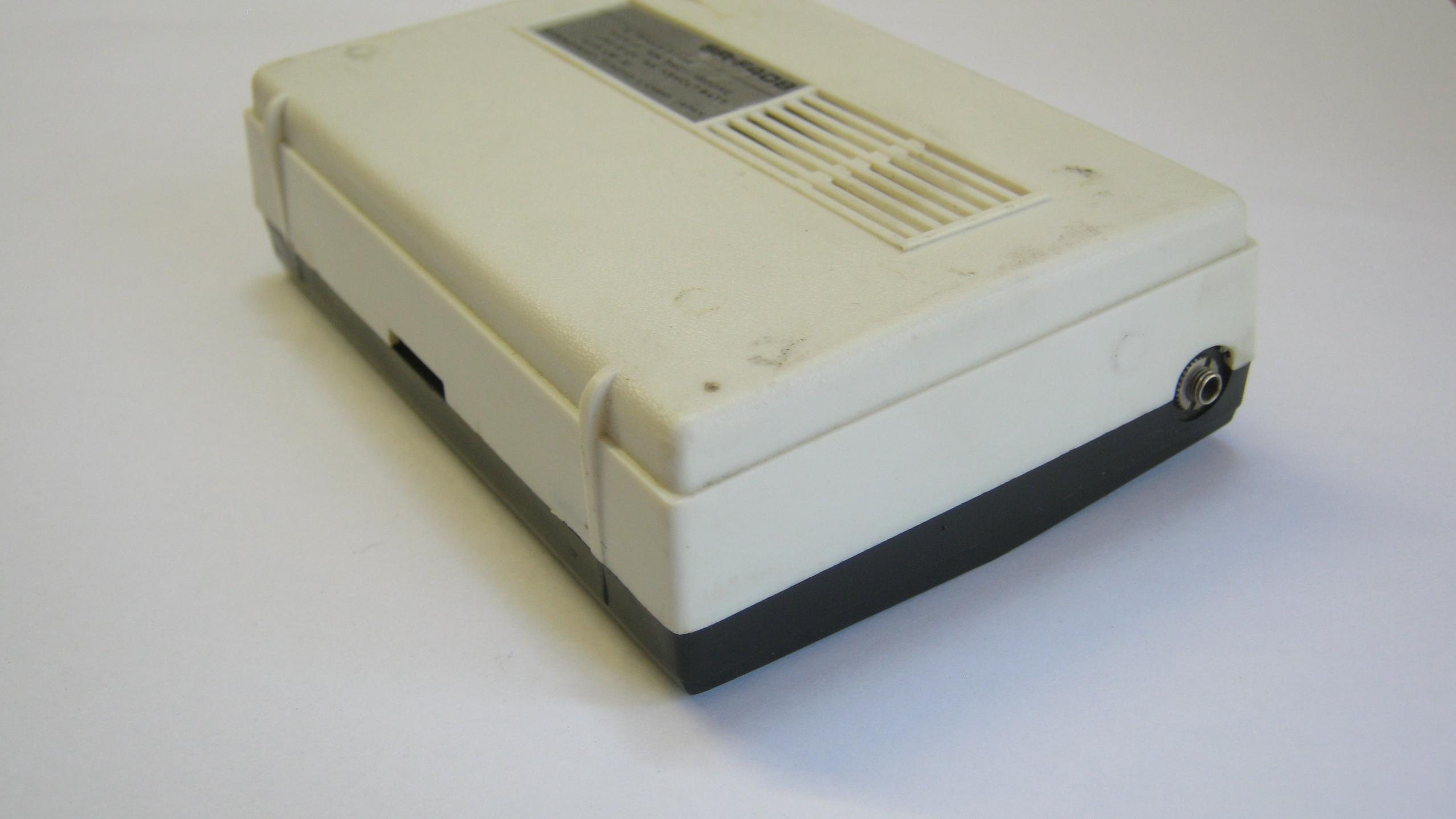

Coverage: 540 1600 KHz, earphone jack.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)
• Literature/Schematics (1)
• Literature/Schematics (4)
• Rences Tamás, Rádiókapcsolások II. Budapest 1975.
