2N3773 ترانزیستور قدرت
نو
شماره کالا: 38876681
650٬000 تومان
6 عدد از این کالا موجود است
مشخصات کالا
| نوع | NPN |
توضیحات بیشتر

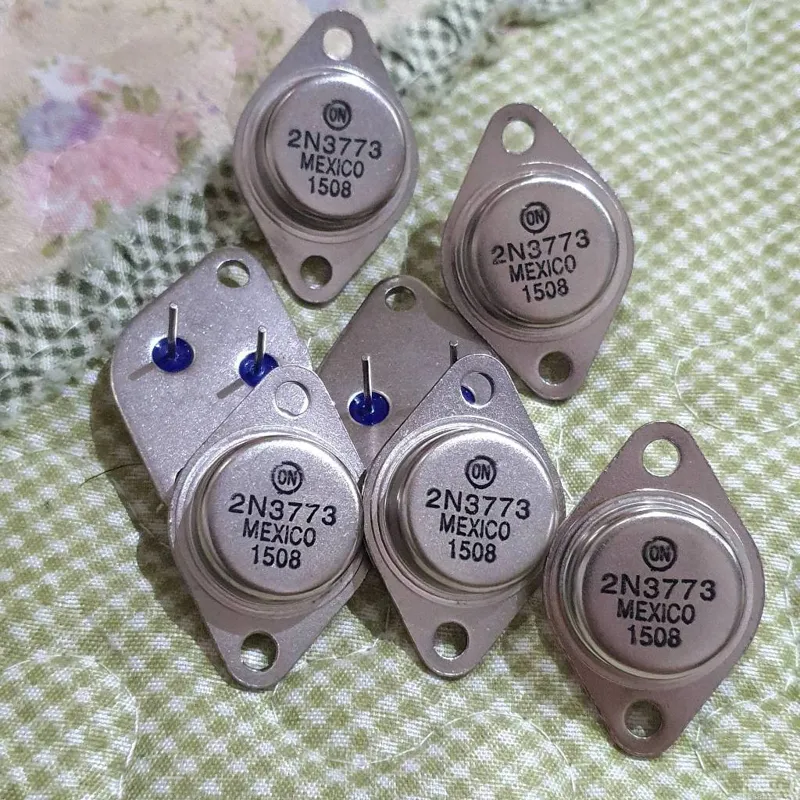

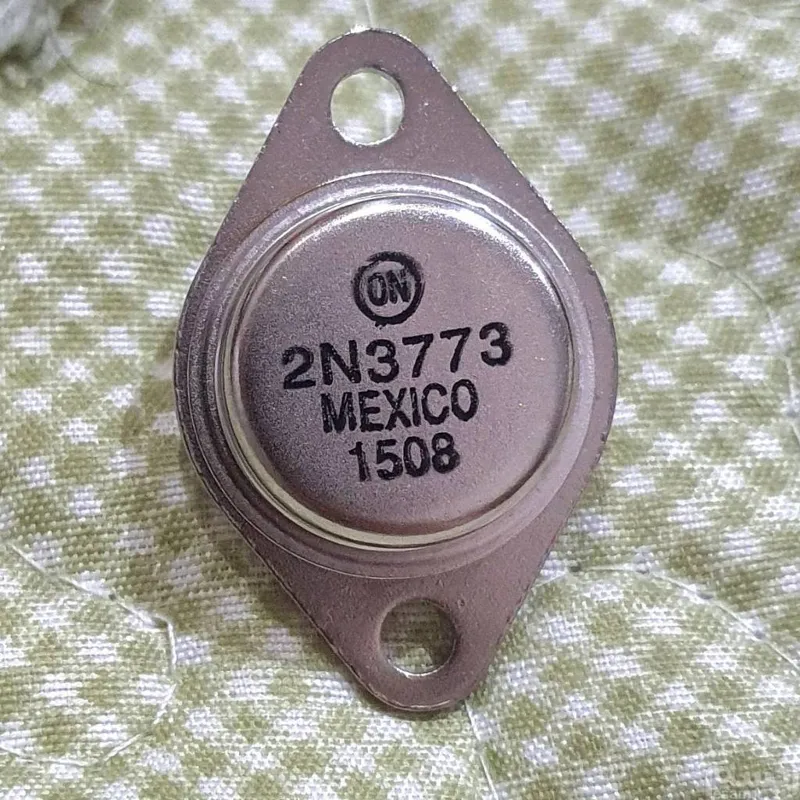

2 عدد از عکسها رو خودم گرفتن .

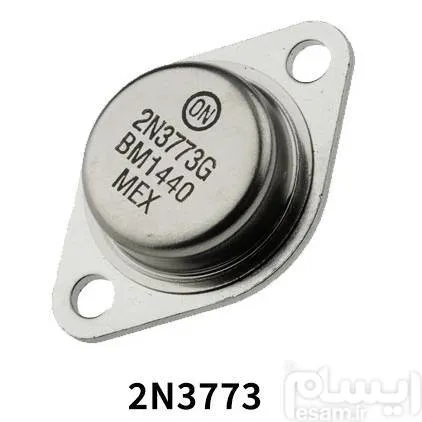

2N3773 NPN Power Transistor
The 2N3773 is a power transistor designed for high-power audio, disk head positioners, and other linear applications.
These devices can also be used in power-switching circuits such as relay or solenoid drivers, dc to dc converters, or inverter.
2N3773 Key Features
- High Safe Operating Area (100 درصد Tested) 150 W esam 100 V
- Completely Characterized for Linear Operation
- High DC Current Gain and Low Saturation Voltage
- hFE = 15 (Min) esam 8 A, 4 V
- VCE(sat) = 1.4 V (Max) esam IC = 8 A, IB = 0.8 A
- For Low Distortion Complementary Design
2N3773 معادل یا جایگزین
2N30, 2N300, 2N3000, 2N3009, 2N301, 2N3010, 2N6609
Application
