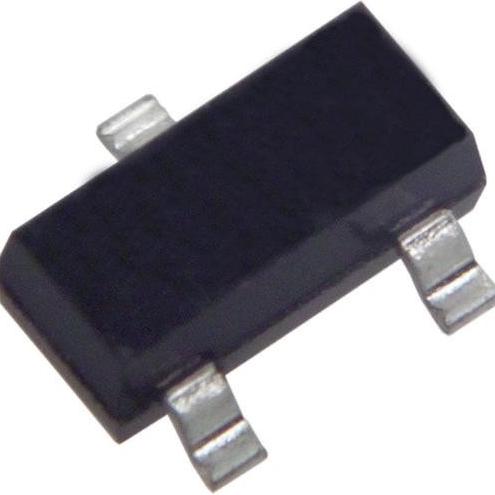

ترانزیستور BC860 بسته 20 عددی
نو
شماره کالا: 38590144
20٬000 تومان
2 عدد از این کالا موجود است
مشخصات کالا
| نوع | PNP |
توضیحات بیشتر
Type Designator: BC860
SMD Transistor Code: 4H_4Hp_4HW_CEC
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 6 pF
Forward Current Transfer Ratio (hFE), MIN: 125
