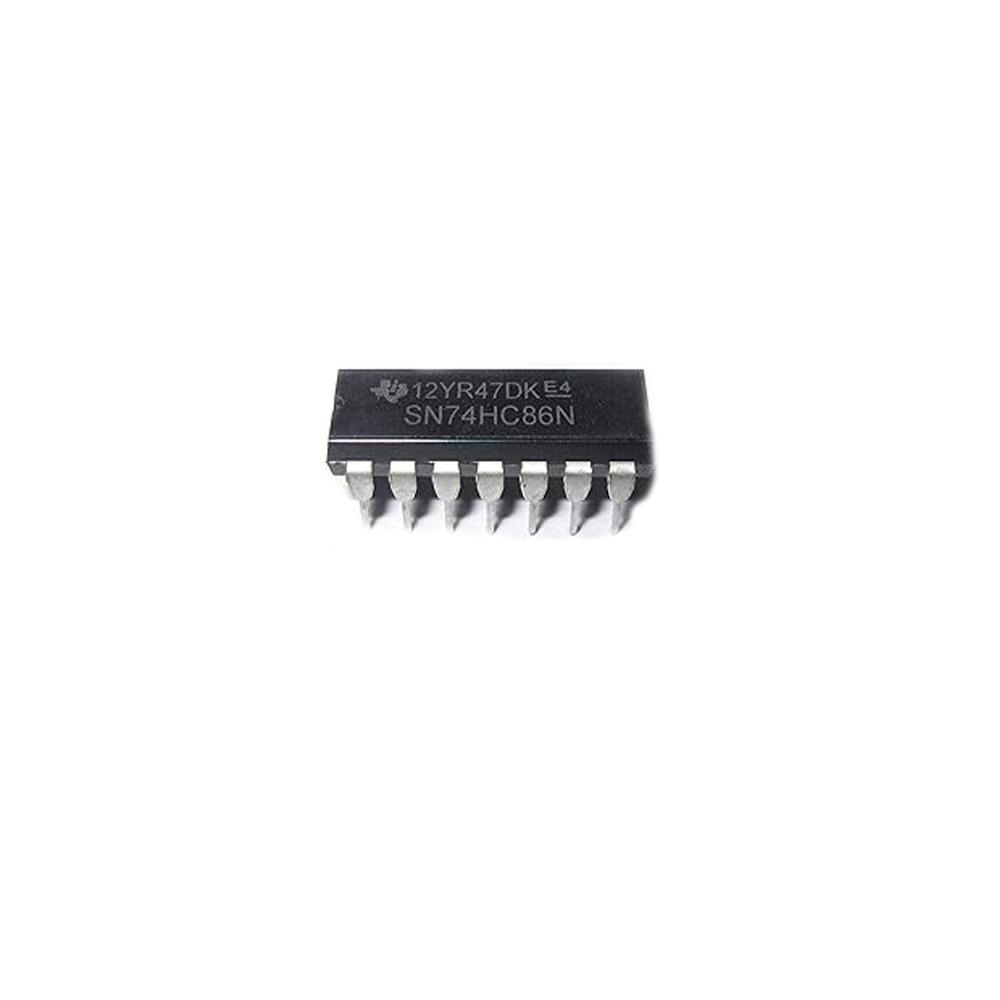

آی سی SN74HC86N
نو
شماره کالا: 38163315
50٬000 تومان
100 عدد از این کالا موجود است
مشخصات کالا
| نوع | سایر |
توضیحات بیشتر
- RoHStrue
- Series74HC
- CategoryLogic ICs/Gates
- DatasheetTexas Instruments SN74HC86N
- Sink Current5.2mA
- Source Current5.2mA
- Supply Voltage2V~6V
- Logic Gate TypeXORGate
- Number of Channels4
- Low Level Range (VIL)0.5V~1.8V
- Operating Temperature-40°C~+85°C
- High Level Range (VIH)1.5V~4.2V
- Propagation Delay Time17nsesam6V,50pF
- Quiescent Current (Max)2uA
- PackageDIP-14
- ManufacturerTexas Instruments
- Mounting TypeThrough Hole
- Logic Level Low0.5V ~ 1.8V
- Current Quiescent (Max)2µA
- Voltage Supply2V ~ 6V
- Number of Circuits4
- PackagingTube
- Package / Case14-DIP (0.300", 7.62mm)
- Logic Level High1.5V ~ 4.2V
- Part StatusActive
- Current Output High, Low5.2mA, 5.2mA
- Features-
- Base Part NumberSN74HC8
- Supplier Device Package14-PDIP
- Number of Inputs2
- Logic TypeXOR (Exclusive OR)
- Max Propagation Delay esam V, Max CL17ns esam 6V, 50pF
- detailXOR (Exclusive OR) IC 4 Channel 14-PDIP
