ماژول UPS و شارژر باتری لیتیومی

Introduction

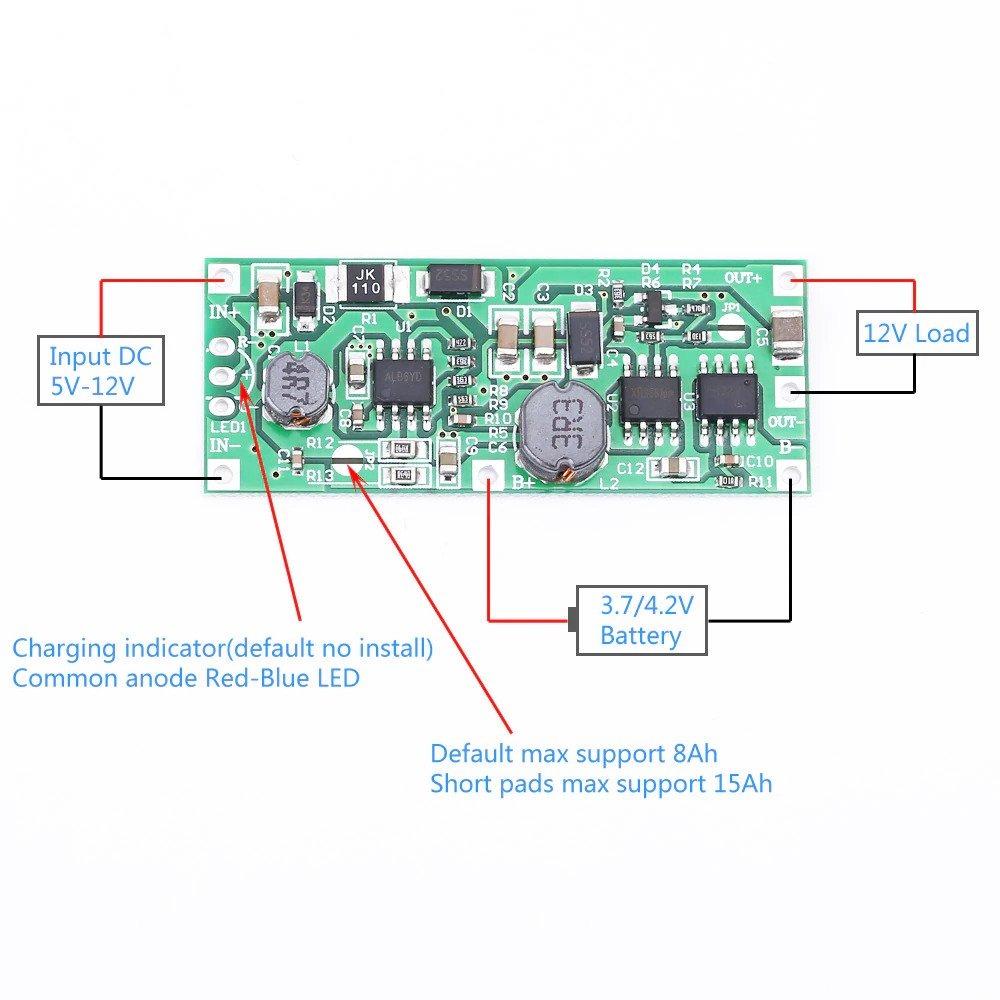

Charge the battery when there is power, and automatically use the battery when power is off. The battery is automatically charged and discharged
With input reverse connection, overheating, overdischarging, and short circuit protection, you can use the UPS Module with confidence
At least 20AWG wire should be used for welding input and output, and the wire length should not exceed 10cm/3.9in
The control board will generate heat when working, so keep a certain distance from the battery when installing
Suitable for routers, switches, alarms, cameras and other equipment to be used as backup power after power failure

Specification
Product Name:UPS Voltage Converter Module
Working Voltage:DC 5.0V-12.0V
Output Voltage:DC 9 or 12.0V
Output Power:12W
Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
Working Temperature range:-40~85
Working Humidity range:0 درصد 95 درصد RH
Size:50*20*6.3mm
