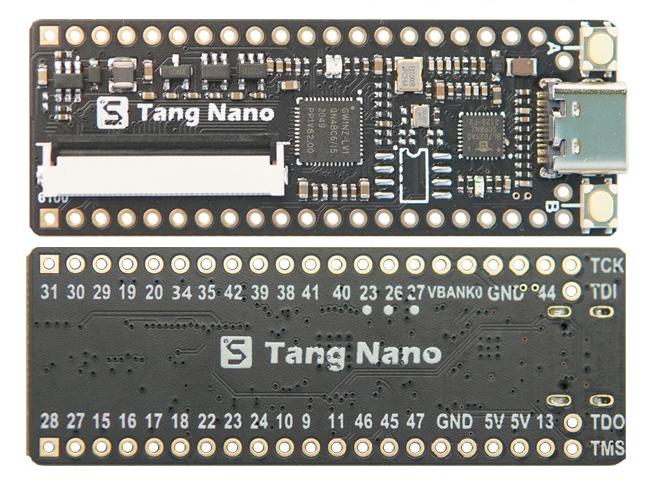

برد Sipeed Tang Nano 1K FPGA

The SiPeed Tang Nano is a low cost FPGA module equip with the GOWIN Semi GW1N FPGA part of the companys LittleBee family. Everything is done through a USB-C cable with which the board is powered, and you can power download the bitstream. Programming can be done with GOWIN IDE available for Windows and Linux.

Key Features:

FPGA Gowin GW1N-1-LV FPGA with 1,152 LUT4, 864 Flip-Flops(FF), 72Kbit Block SRAM, 4x B-SRAM, 96Kbit user flash, 1x PLL, 4x I/O banks

System Memory 64Mbit (8MB) 3.3V PSRAM

Display Standard 40-pin RGB LCD interface with on-board screen backlight driver circuit (default normally open, EN pin can be connected to FPGA)

USB USB Type-C port for download and power supply

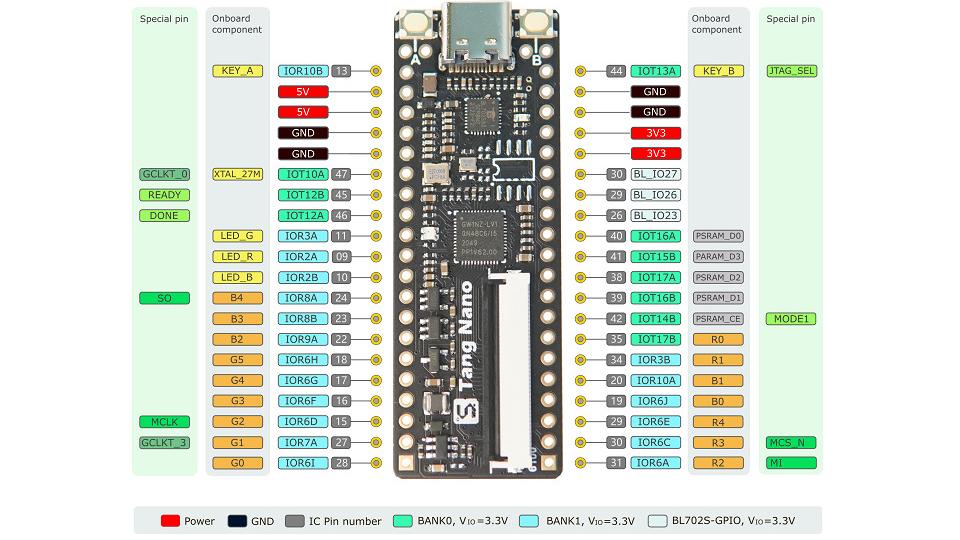

Expansion 34 I/O ports and power pins on headers (unpopulated), breadboard-compatible

Misc RGB LED, 2x user buttons, 24MHz crystal oscillator

Power Supply 5V via USB-C port (at least 400 mA)

Dimensions   58٫4 x 21.3 x 4.8 mm
