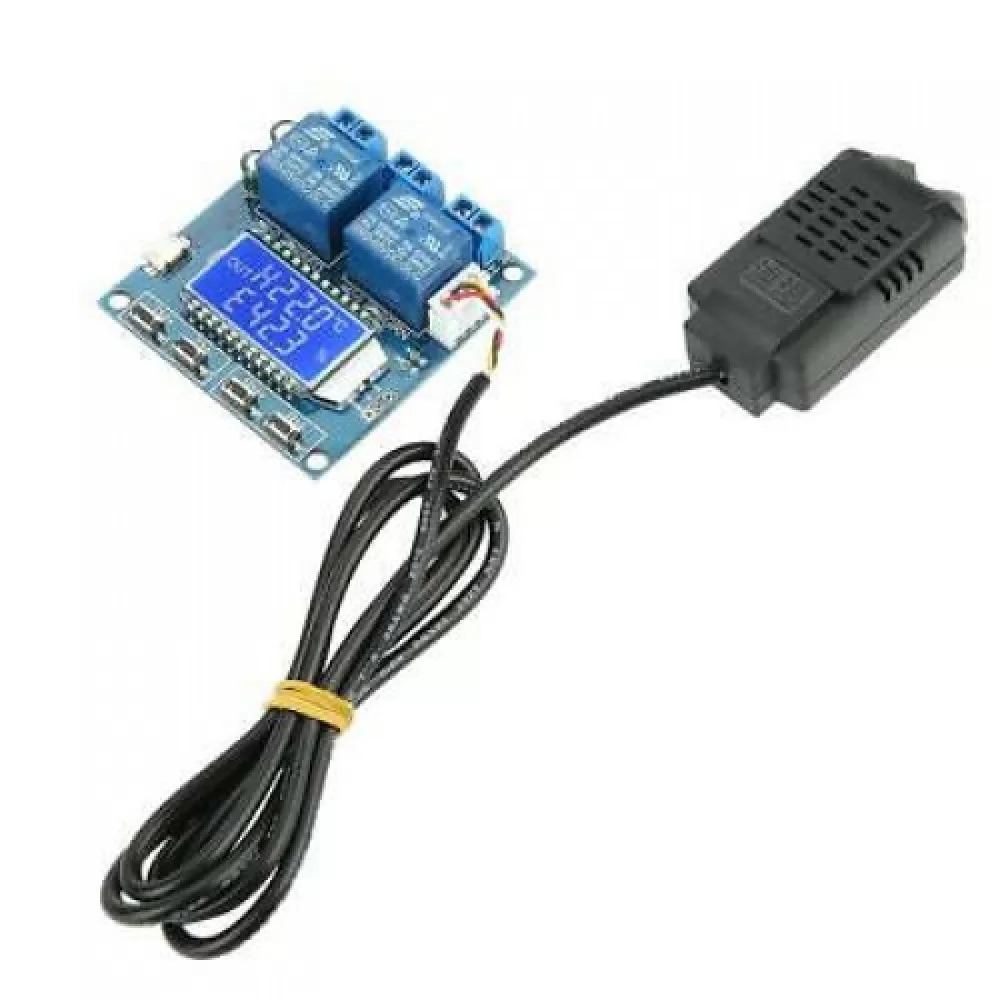

کنترل کننده دما و رطوبت دیجیتال مدل XY-TR01

ماژول کنترلر دما و رطوبت دیجیتال مدل XY-TR01



Description:

XY-TR01 Temperature and humidity control module high precision digital display word double output automatic constant temperature and humidity control panel

Product adopts industrial-grade chip, high-precision SHT20 temperature and humidity sensor.



Parameter:

Temperature range: -20 -60 Celsius

Humidity range: 00% -100%RH

Control accuracy: 0.1 Celsius, 0.1%RH

Detection probe: integrated sensor

Output type: relay output

Output capacity: maximum 10A

Dimension: 57*60*20mm

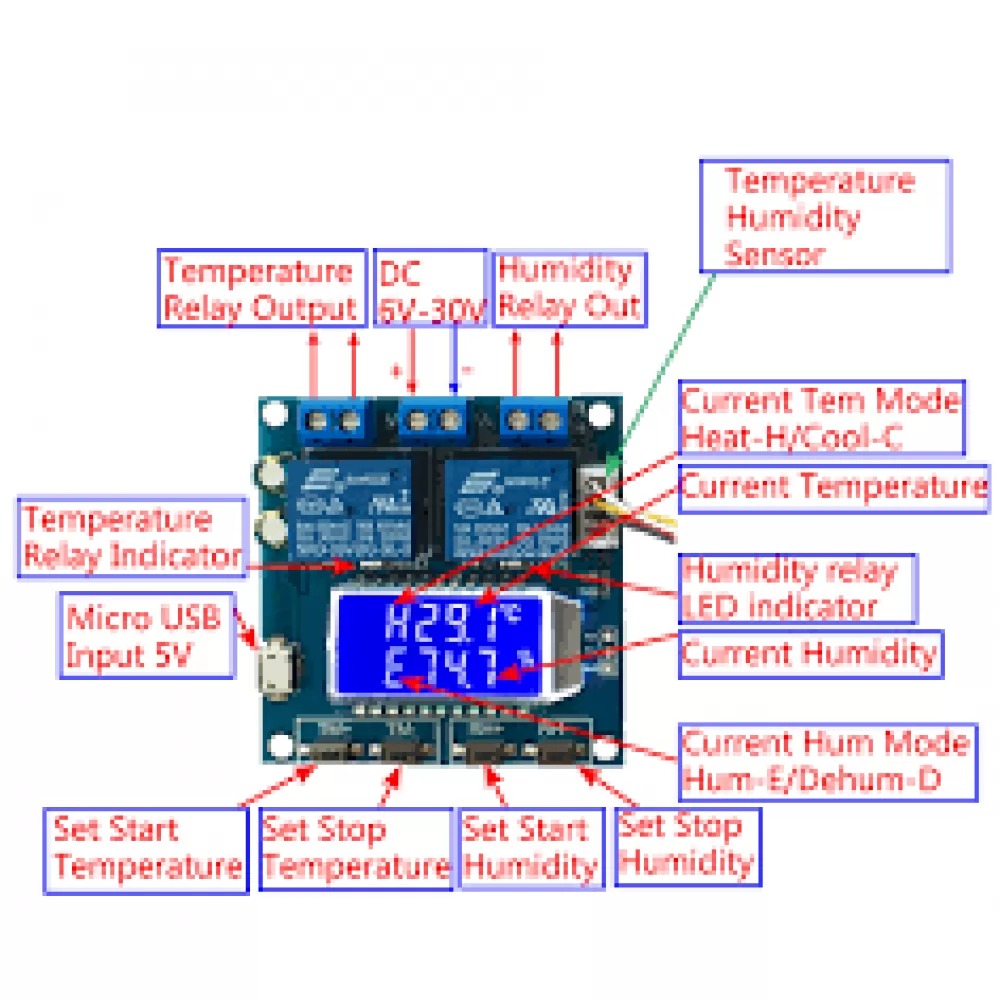

Functions:

Temperature function:

1. Automatic recognition of working mode

2. Cooling

3. Heating

4. Temperature correction function



Humidity function:

1. Automatic recognition of working mode

2. Dehumidifying

3. Humidifying

4. Humidity correction function



Remotely reading/setting of parameters

Real-time reporting of temperature/humidity

Relay enable function (enabled by default)



Set Parameter:

1. Working Mode:

The system automatically recognizes the working mode according to the starting/stopping temperature and the starting/stopping humidity.

2. How to set the starting/stopping temperature function?

Hold press the TM+/ TM- button for more than 3 seconds to enter the startup/stop temperature setting interface. The parameters can be changed by the TM+ and TM- buttons. After the parameters are changed, wait for 6s and it will automatically save and exit.

3. How to set the starting/stopping humidity function?

Hold press the RH+/RH- button for more than 3 seconds to set the minimum/maximum value of humidity. The parameters can be changed by RH+ and RH- buttons. After the parameters are changed, wait for 6s and it will automatically save and exit.
