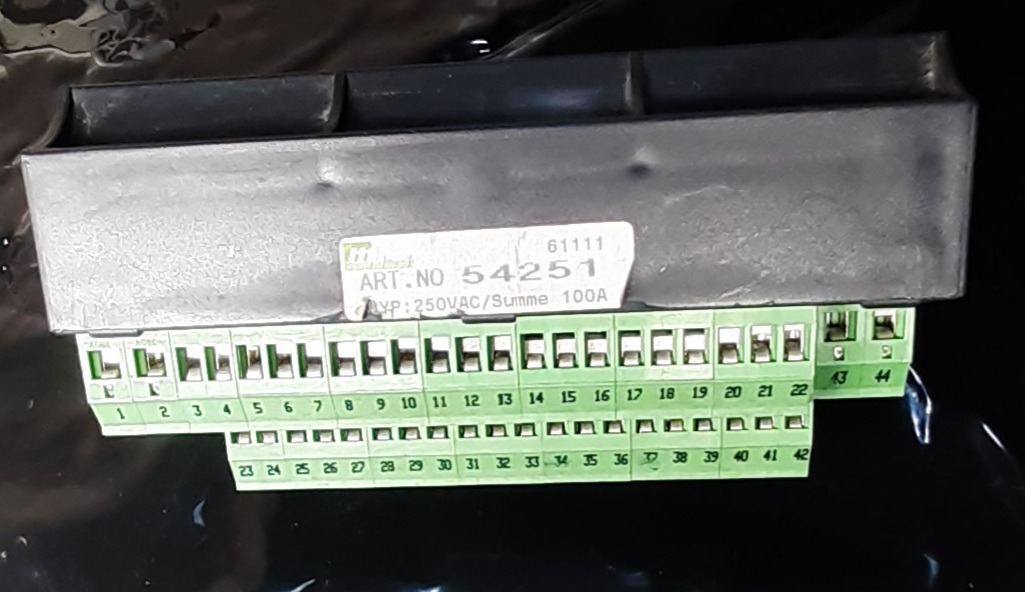

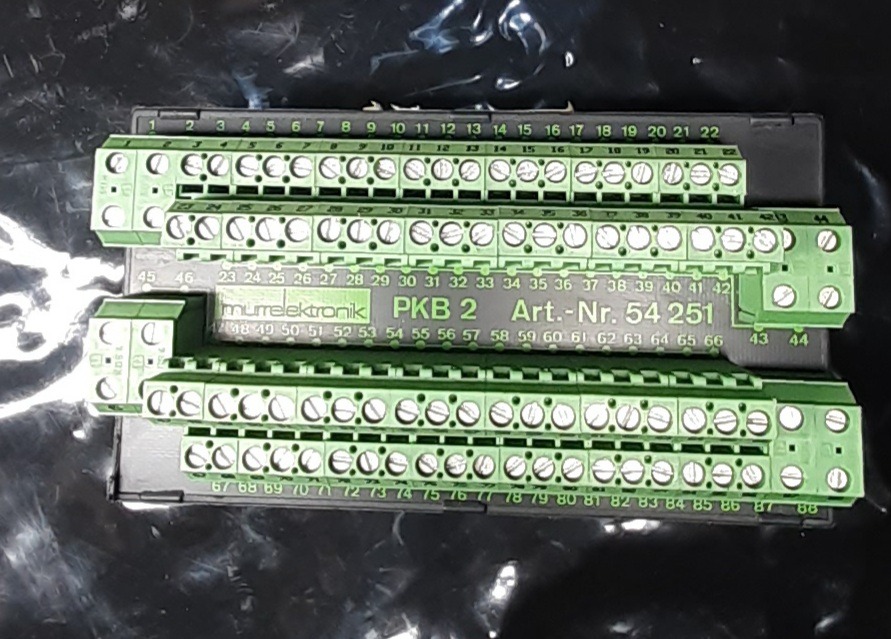

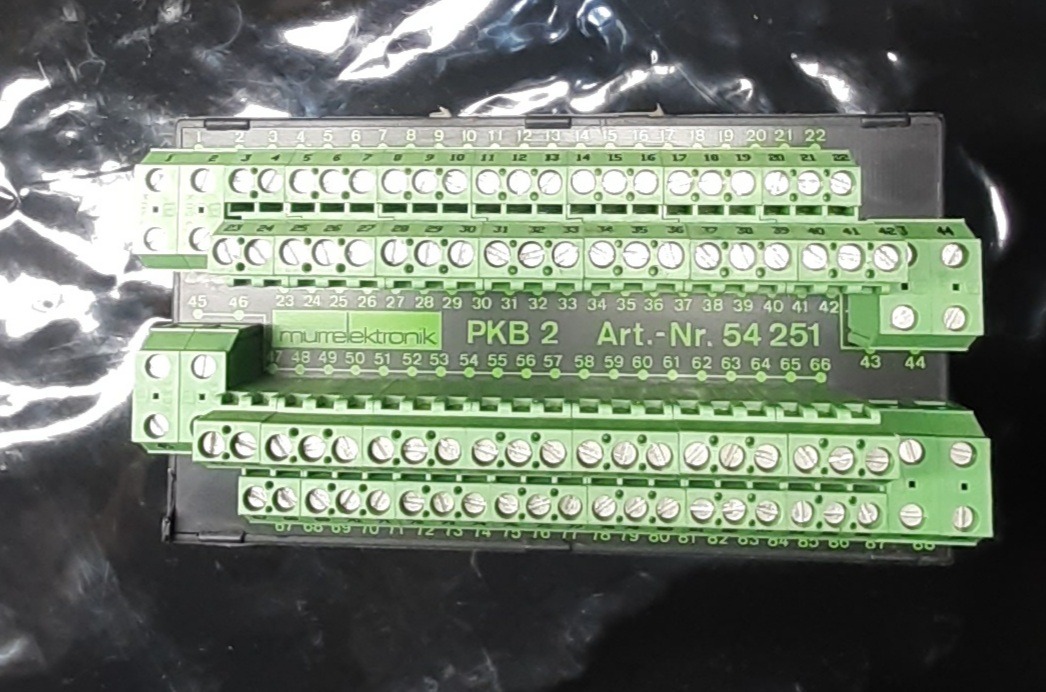

PKB 2 transfer module 250V / 25 A

MURR elektroni

Made in Germany

4× 22-pin
25 A per potential

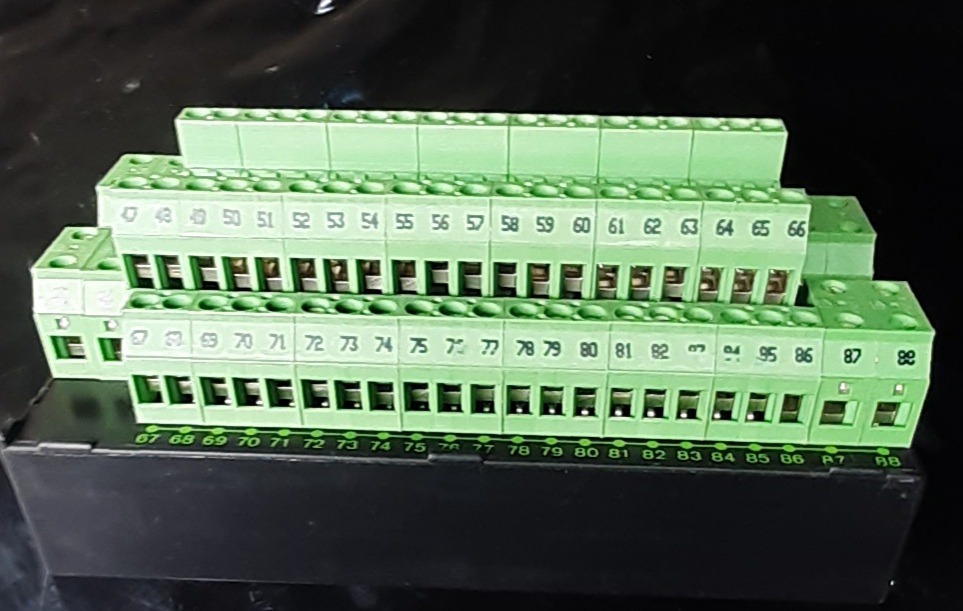

rail Screw terminals
Supply terminal: max. 6 mm² single-wire, total current: max. 100 A

Technical data

Electrical data | Supply



operating voltage AC



250 V

Total current per potential rail max.



25 A

installation



Connection cross-section single-wire max.



6 mm²

Connection cross-section multi-/fine-stranded max.



4 mm²

AWG number



9

Installation | Connection



connection type



screw terminals SK

Device protection | Electrical



overvoltage category (EN 60664-1)



II

Mechanical data | Assembly data

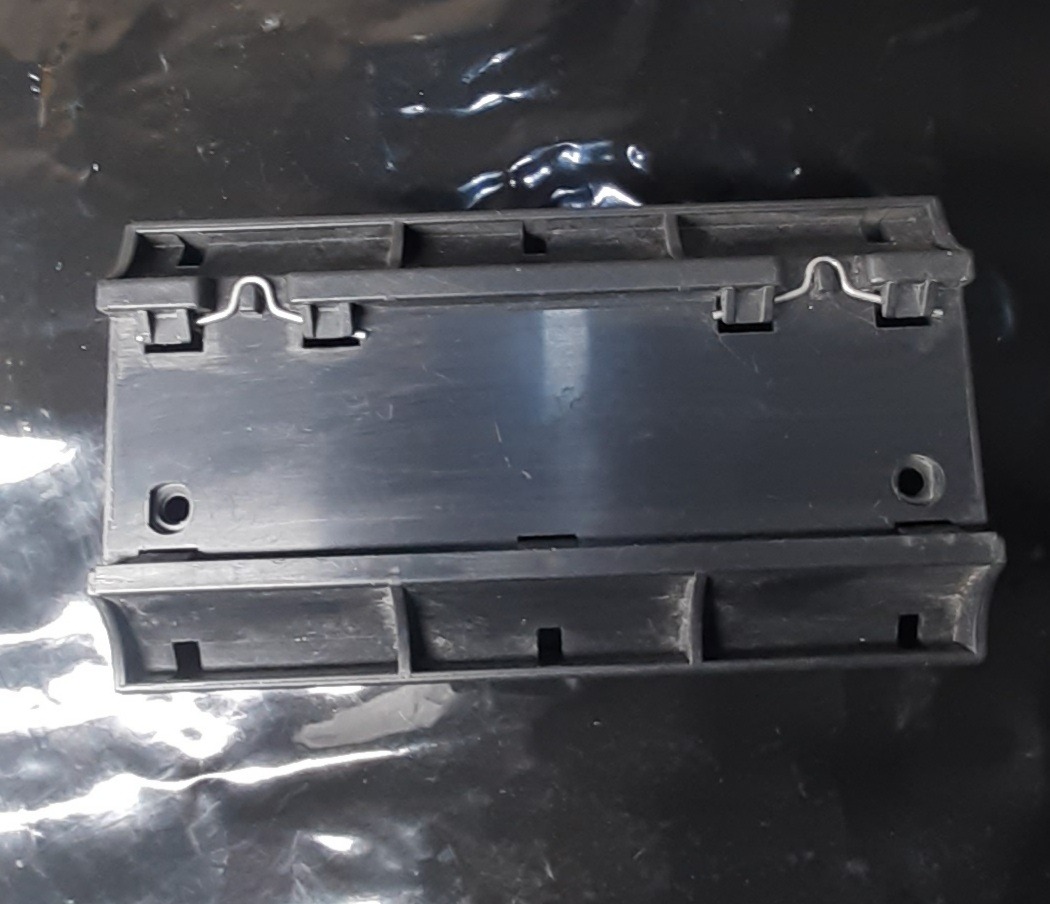

type of fastening



caught

Suitable for mounting type



mounting rail, (EN 60715)

Height



75 mm

Width



135 mm

depth



66 mm

Environmental characteristics | Climatic



Operating temperature min.



-20 °C

Operating temperature max.



60 °C
