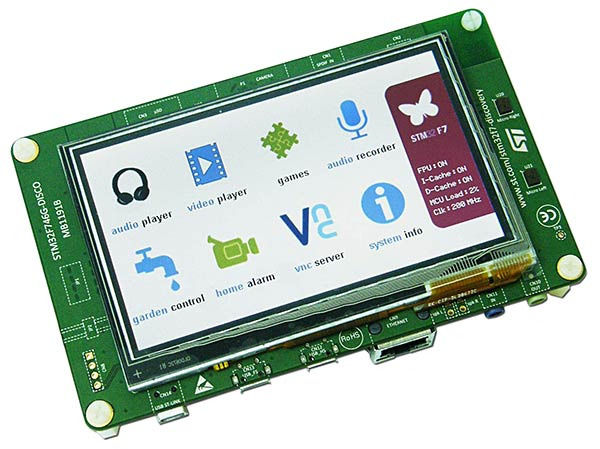

برد دیسکاوری DISCOVERY با میکروکنترلر STM32F746

برد دیسکاوری F7 STM32F746G دارای تمامی پروتکل های ارتباطی میکروکنترلر STM32F746G به همراه یک نمایشگر تاچ رنگی

STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
    On-board ST-LINK/V2-1 supporting USB re-enumeration capability
    Mbed-enabled (mbed.org)
    USB functions: virtual COM port, mass storage, debug port
    4.3-inch 480x272 color LCD-TFT with capacitive touch screen
    Camera connector
    SAI audio codec
    Audio line in and line out jack
    Stereo speaker outputs
    Two ST MEMS microphones
    SPDIF RCA input connector
    Two pushbuttons (user and reset)
    128-Mbit Quad-SPI Flash memory
    128-Mbit SDRAM (64 Mbits accessible)
    Connector for microSD card
    RF-EEPROM daughterboard connector
    USB OTG HS with Micro-AB connectors
    USB OTG FS with Micro-AB connectors
    Ethernet connector compliant with IEEE-802.3-2002
    Five power supply options:
    ST LINK/V2-1
    USB FS connector
    USB HS connector
    VIN from Arduino connector
    External 5 V from connector
    Power supply output for external applications: 3.3 V or 5 V
    Arduino Uno V3 connectors
    Comprehensive free software including a variety of examples, part of STM32Cube package
    Supported by a wide choice of integrated development environments
