voip

کالا دست دوم است و از نظر ظاهری تمیز نیست ولس شرط کار است و قیمت ان در بازار بالای 2800است من زیر قیمت میدهم

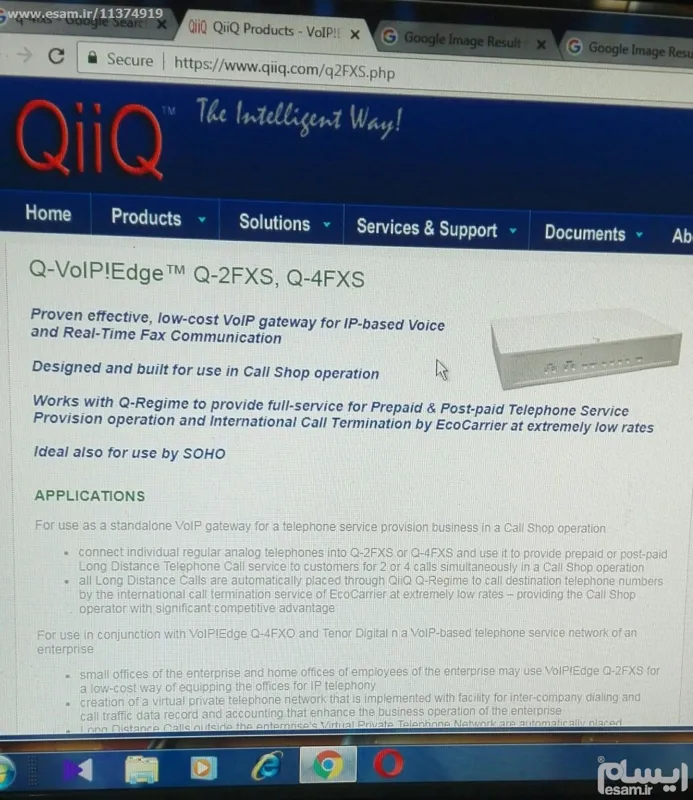

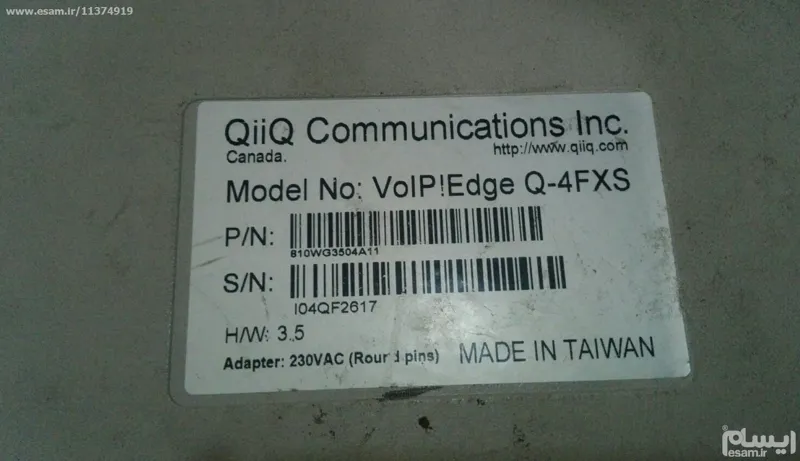

Q-VoIP!Edge Q-2FXS, Q-4FXS

Proven effective, low-cost VoIP gateway for IP-based Voice and Real-Time Fax Communication

Designed and built for use in Call Shop operation

Works with Q-Regime to provide full-service for Prepaid & Post-paid Telephone Service Provision operation and International Call Termination by EcoCarrier at extremely low rates

Ideal also for use by SOHO

APPLICATIONS

For use as a standalone VoIP gateway for a telephone service provision business in a Call Shop operation

• connect individual regular analog telephones into Q-2FXS or Q-4FXS and use it to provide prepaid or post-paid Long Distance Telephone Call service to customers for 2 or 4 calls simultaneously in a Call Shop operation
• all Long Distance Calls are automatically placed through QiiQ Q-Regime to call destination telephone numbers by the international call termination service of EcoCarrier at extremely low rates providing the Call Shop operator with significant competitive advantage

For use in conjunction with VoIP!Edge Q-4FXO and Tenor Digital n a VoIP-based telephone service network of an enterprise

• small offices of the enterprise and home offices of employees of the enterprise may use VoIP!Edge Q-2FXS for a low-cost way of equipping the offices for IP telephony
• creation of a virtual private telephone network that is implemented with facility for inter-company dialing and call traffic data record and accounting that enhance the business operation of the enterprise
• Long Distance Calls outside the enterprises Virtual Private Telephone Network are automatically placed through QiiQ Q-Regime to call destination telephone numbers by the international call termination service of EcoCarrier at extremely low rates providing the enterprise with significant savings in telephone communication expense

When supported by Q-Regime, the deployment VoIP!Edge Q-2FXS or Q-4FXS or any of the other VoIP!Edge VoIP gateways is highly scalable to increase the line capacity of the VoIP service simply add more units of VoIP!Edge.

No Extra Installation Cost

if you already have

• a LAN (Local Area Network)
• access to the Internet, WAN (Wide Area Network) for data communication, VPN (Virtual Private Network), or Frame Relay network or Leased Line
• access to Internet through DSL or Cable Modem
• access to Internet through 56K modem or on an ISDN line

Identified Savings provided by VoIP!Edge Q-2FXS or Q-4FXS

• the cost of installation of 2 or 4 telephone lines eliminated respectively
• the monthly telephone line charge of 2 or 4 lines eliminated respectively
• Long Distance Charges for calls on 2 or 4 lines eliminated respectively

FEATURES

TECHNICAL FEATURES

• ITU-T H.323 v3 compliance or SIP (two separate versions)
• Audiocodes Voice Packetizing technology to ensure the best DSP-based voice quality
• Automatic discovery of Gatekeeper on the Internet
• Facility for selection to operate in peer-to-peer mode (in this case no Gatekeeper is needed)
• E.164 Common Dial Plan
• DTMF Dialing
• DTMF detection / generation
• TFTP/FTP software upgrade this feature enables positive transfer of software to remote Q-2FXS or Q-4FXS for upgrading its embedded software
• Remote configuration / reset
• MS-NetMeeting v3.0 compatible anyone using NetMeeting can set up a peer-to-peer VoIP communication with Q-2FXS or Q-4FXS
• Support fixed IP address and DHCP
• Support PPPoE for ADSL internet connection
• Provide QOS function with TOS (Type of Services) setting this feature lets the appropriate router to give priority treatment to the voice data traffic over the non- voice data traffic
• Provide T.38/FAX and voice Auto-Switching this feature enables Q-2FXS or Q-4FXS to distinguish a fax call from a voice call and send it as real-time fax to T.38 specification
• Hot Line Service for automatic calling to a predetermined IP destination

MANAGEMENT FEATURES

Three easy ways for system configuration, debugging, and maintenance

• Console port: RS-232C port
• TELNET
• Web browser

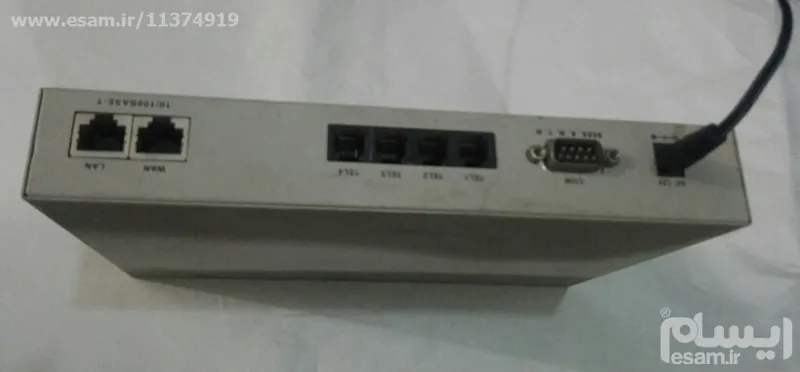

INTERFACE

• 10/100 BaseT Ethernet RJ45 port for connection to the Hub of a LAN or cable modem or ADSL modem
• 10/100 BaseT Ethernet RJ45 port for connection of a computer or other network device
• Asynchronous Console RS-232C DB-9 connector for configuration of the unit to suit a specific application
• 2 or 4 Analog (FXS) RJ-11 ports for connection with 2 or 4 regular analog telephones or the analog CO ports of a PBX
• 12 VDC input (external 100 240 VAC input adaptor provided)

FXS INTERFACE

• 2-wire loop start
• Programmable AC impedance, feeding voltage, ring voltage, ring cadence, loop current, and call progress tone

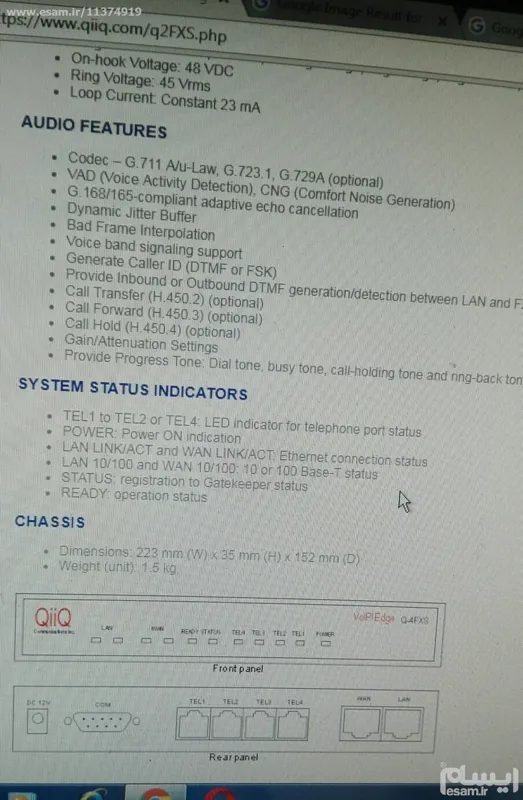

• On-hook Voltage: 48 VDC
• Ring Voltage: 45 Vrms
• Loop Current: Constant 23 mA

AUDIO FEATURES

• Codec G.711 A/u-Law, G.723.1, G.729A (optional)
• VAD (Voice Activity Detection), CNG (Comfort Noise Generation)
• G.168/165-compliant adaptive echo cancellation
• Dynamic Jitter Buffer
• Bad Frame Interpolation
• Voice band signaling support
• Generate Caller ID (DTMF or FSK)
• Provide Inbound or Outbound DTMF generation/detection between LAN and FXS interface
• Call Transfer (H.450.2) (optional)
• Call Forward (H.450.3) (optional)
• Call Hold (H.450.4) (optional)
• Gain/Attenuation Settings
• Provide Progress Tone: Dial tone, busy tone, call-holding tone and ring-back tone

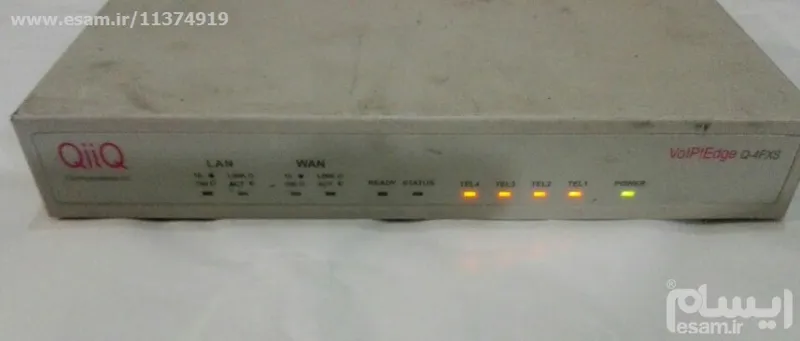

SYSTEM STATUS INDICATORS

• TEL1 to TEL2 or TEL4: LED indicator for telephone port status
• POWER: Power ON indication
• LAN LINK/ACT and WAN LINK/ACT: Ethernet connection status
• LAN 10/100 and WAN 10/100: 10 or 100 Base-T status
• STATUS: registration to Gatekeeper status
• READY: operation status

CHASSIS

• Dimensions: 223 mm (W) x 35 mm (H) x 152 mm (D)
• Weight (unit): 1.5 kg
