باندل گیگابایت A75M DDR3

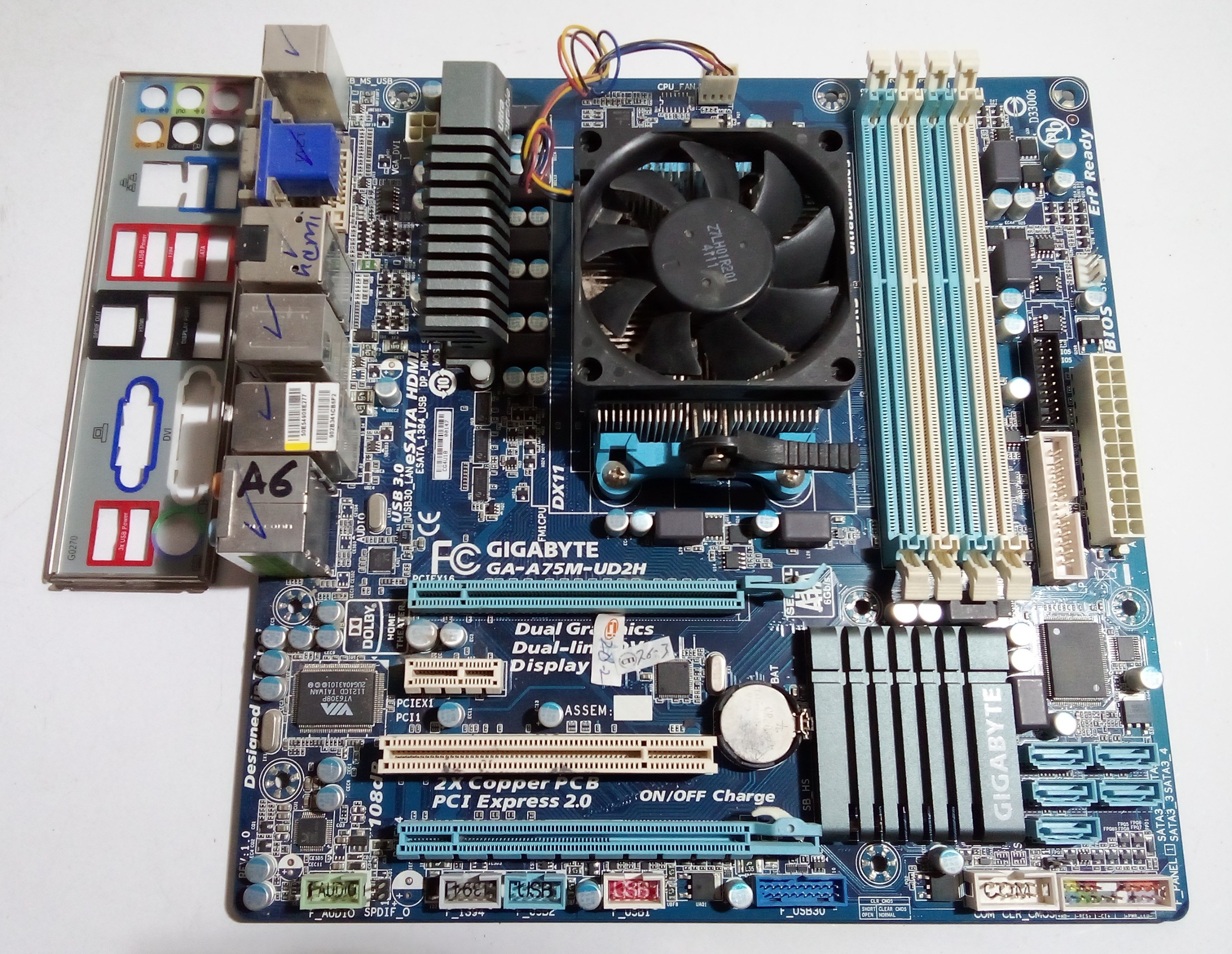

باندل گیگابایت AMD - A75M UD2H

سوکت FM1 دارای 4 اسلت رم DDR3 ساپورت حافظه تا 64 گیگ - دارای دو اسلت برای کارت گرافیک

دارای گرافیک آنبورد با خروجی های تصویر VGA-Display port- HDMI - DVI

دارای دو عدد پورت USB3

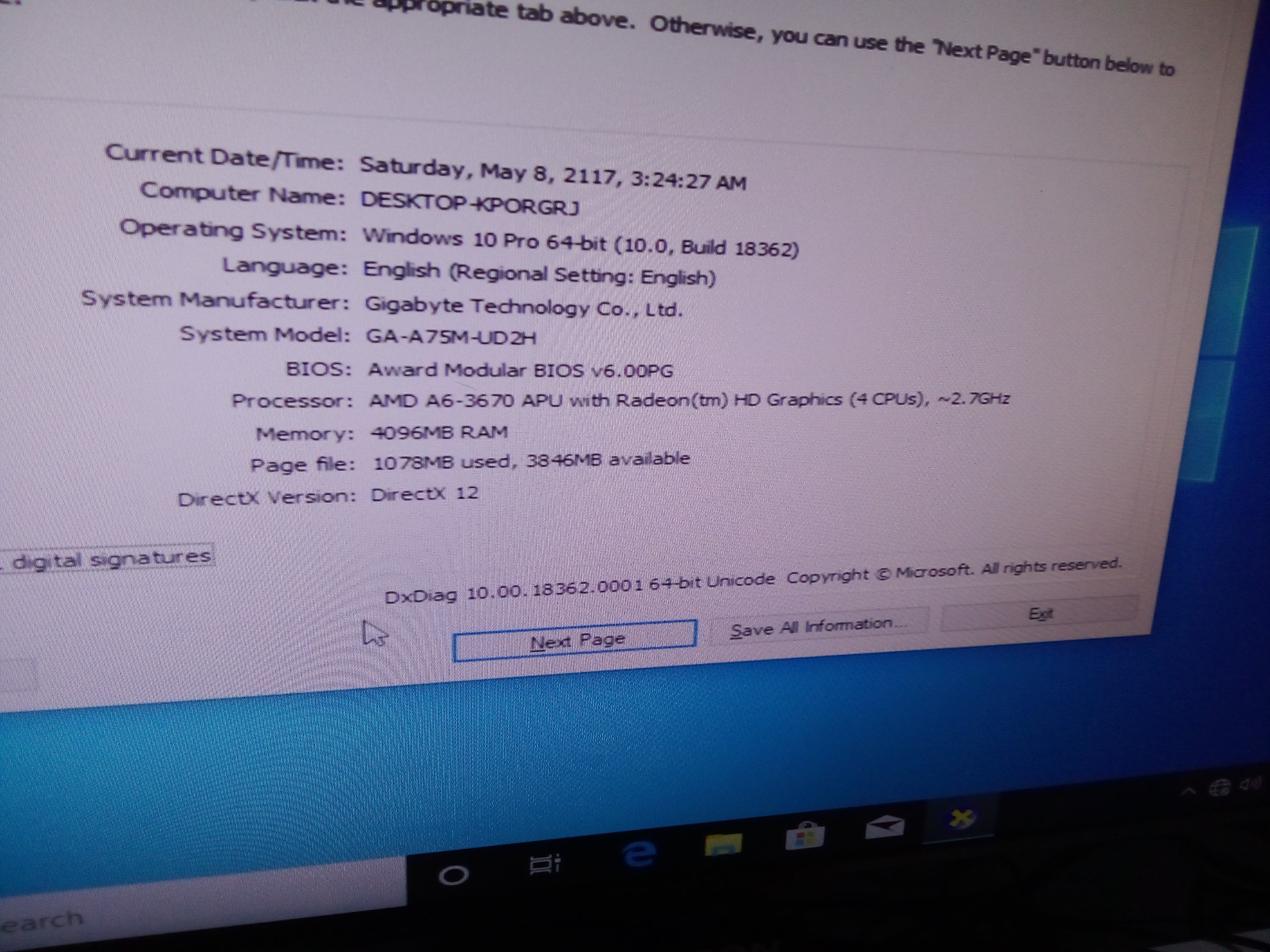

باندل کاملا سالم و تست شده در محیط ویندوز

به همراه سی پی یو  A6-3670  چهار هسته و فن و پنل



FM1 Socket:


1. AMD A series & E2 series processors

(Please refer "CPU Support List" for more information.)

1. AMD A75 chipset

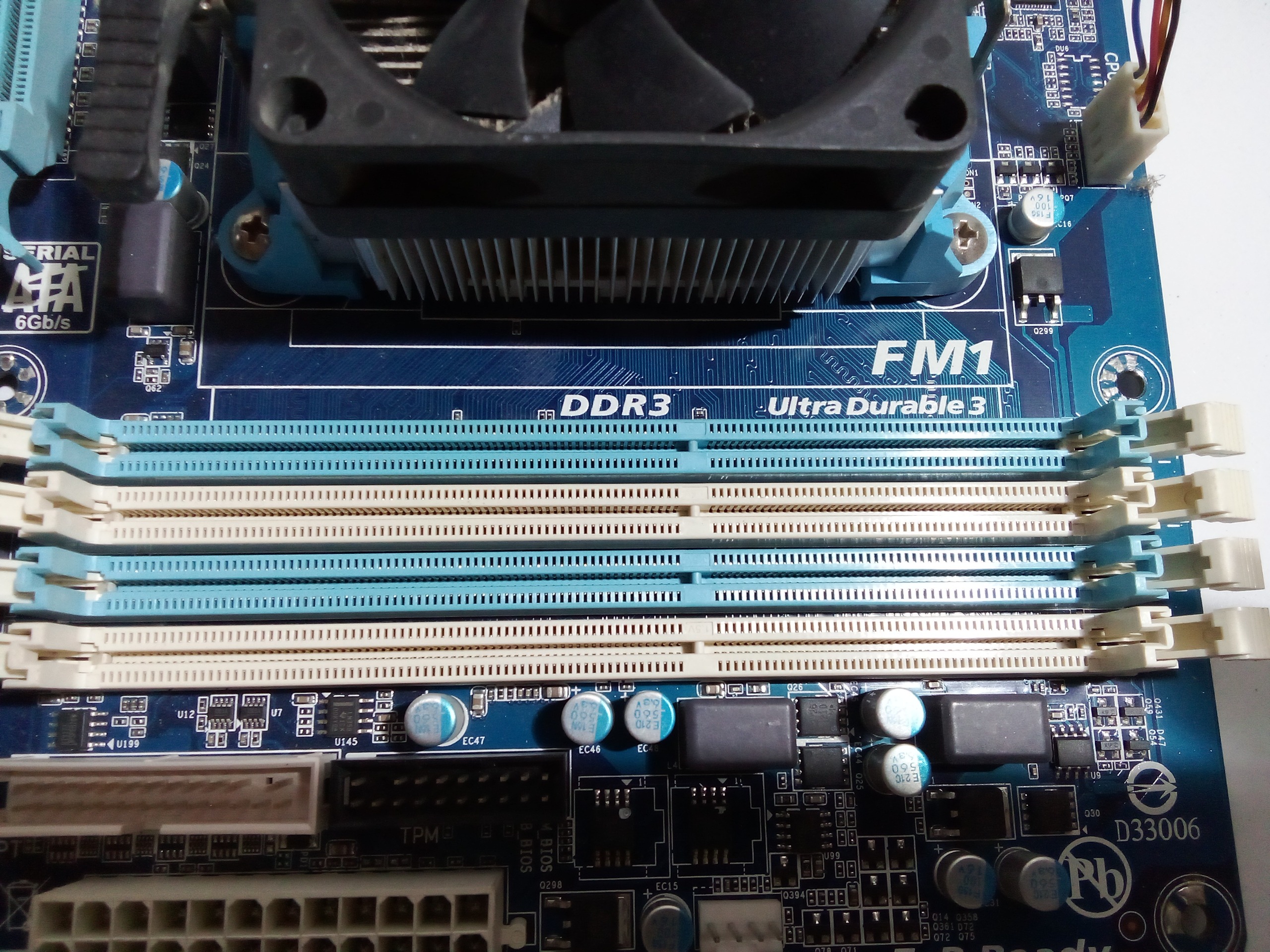

2. 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory (Note 1)
3. Dual channel memory architecture
4. Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules (Note 2)

(Please refer "Memory Support List" for more information.)

APU:


1. 1 x D-Sub port (Note 3)
2. 1 x DVI-D port, supporting a maximum resolution of 2560x1600 (Note 3) (Note 4) (Note 5)
3. 1 x HDMI port, supporting a maximum resolution of 1920x1200 (Note 3)
4. 1 x DisplayPort, supporting a maximum resolution of 2560x1600 (Note 3)

(All integrated graphics ports do not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.)

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby® Home Theater
5. Support for S/PDIF Out
6. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

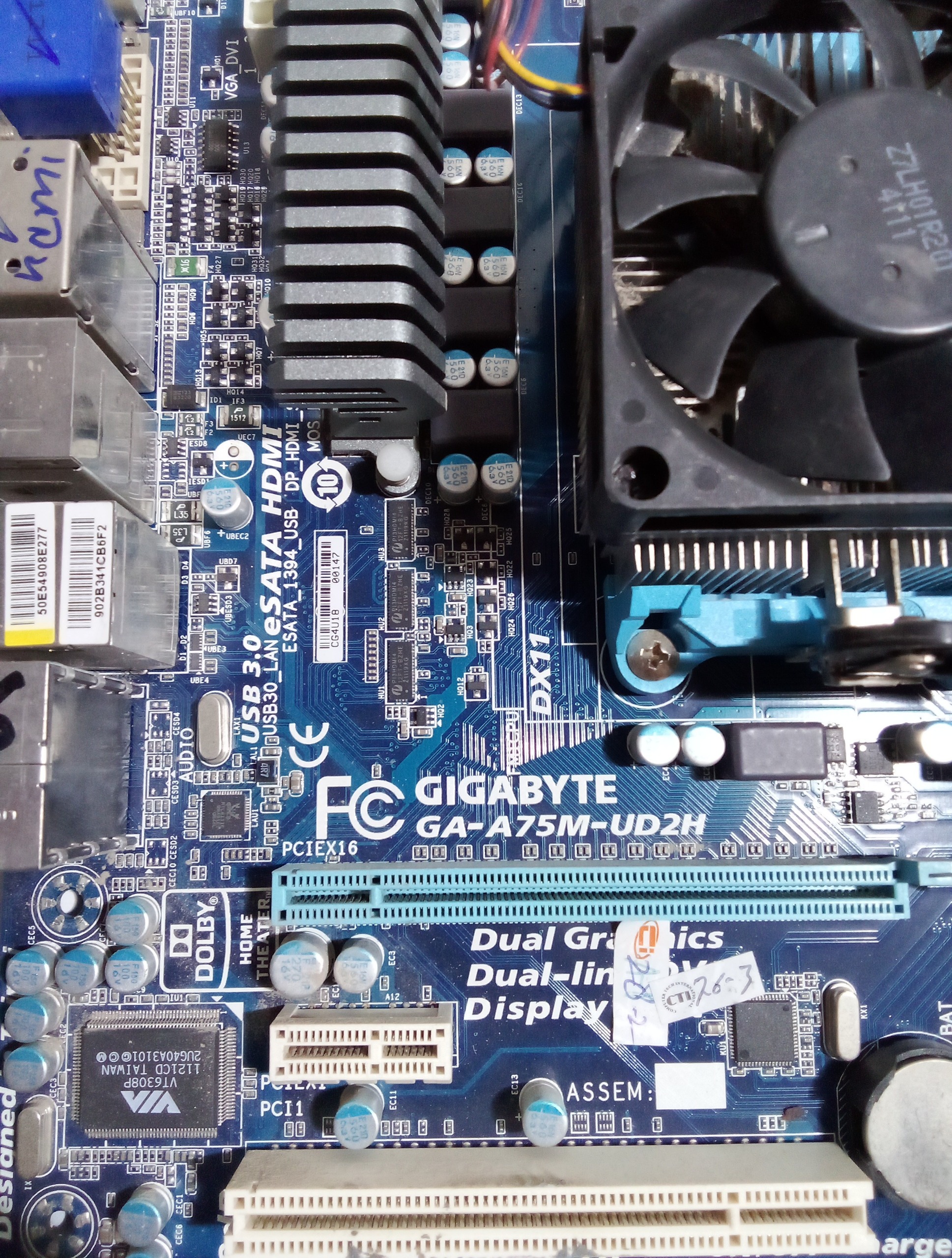

7. 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 6)
8. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
9. 1 x PCI Express x1 slot
10. 1 x PCI slot
11. Support for AMD Dual Graphics technology

Chipset:


1. 5 x SATA 6Gb/s connectors supporting up to 5 SATA 6Gb/s devices
2. 1 x eSATA 6Gb/s port on the back panel supporting up to 1 SATA 6Gb/s device (Note 7)
3. Support for RAID 0, RAID 1, RAID 10, and JBOD

Chipset:


1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

VIA VT6308 chip:


1. Up to 2 IEEE 1394a ports (1 on the back panel, 1 port available through the internal IEEE 1394a header)
2. 1 x 24-pin ATX main power connector
3. 1 x 4-pin ATX 12V power connector
4. 5 x SATA 6Gb/s connectors
5. 1 x APU fan header
6. 1 x system fan header
7. 1 x power fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 2 x USB 2.0/1.1 headers
12. 1 x USB 3.0/2.0 header
13. 1 x IEEE 1394a header
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x Trusted Platform Module (TPM) header
17. 1 x clearing CMOS jumper
18. 1 x PS/2 keyboard/mouse port

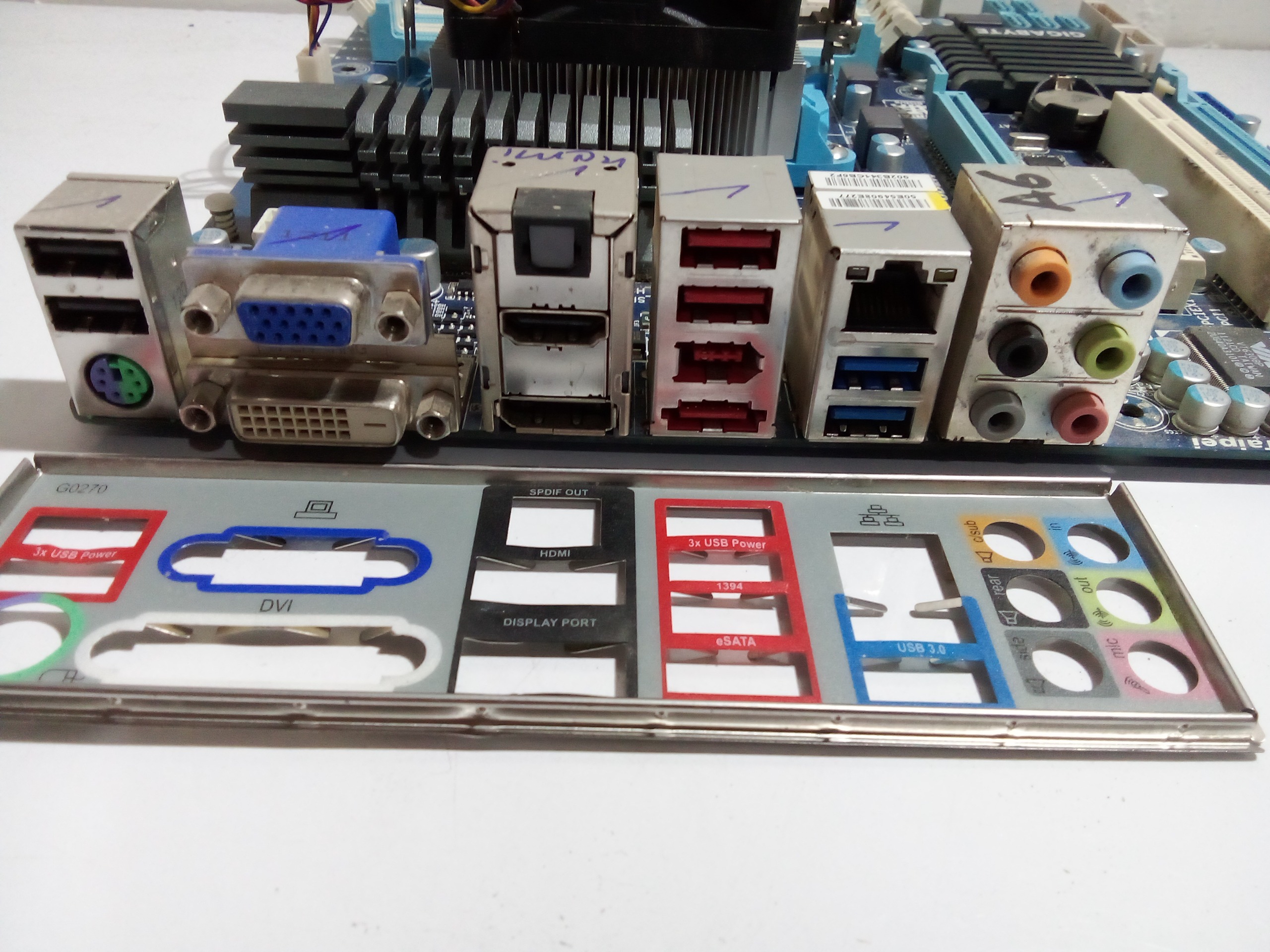

19. 1 x D-Sub port
20. 1 x DVI-D port
21. 1 x HDMI port
22. 1 x DisplayPort
23. 1 x optical S/PDIF Out connector
24. 4 x USB 2.0/1.1 ports
25. 2 x USB 3.0/2.0 ports
26. 1 x eSATA 6Gb/s port
27. 1 x RJ-45 port
28. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
29. iTE IT8720 chip

I/O Controller



Back Panel Connectors



Internal I/O Connectors



IEEE 1394



USB
