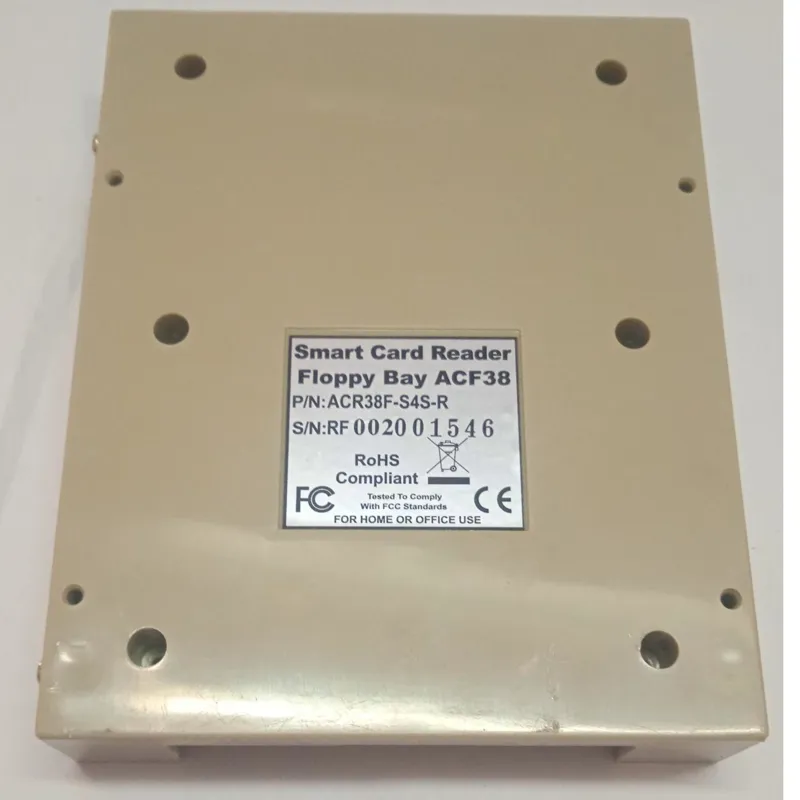

اسمارت کارت ریدر -s4s-r smart card reader AcR38f

اندازه فلاپی دیسک است

• Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) card
• Supports microprocessor cards with T=0 or T=1 protocol
• Supports memory cards:
  • Cards following the I2C bus protocol (free memory cards), including:

    • Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
    • SGS-Thomson: ST14C02C, ST14C04C
    • Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
  • Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542
  • Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528
  • Cards with 104 type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
  • Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
  • Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
  • Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
• Supports PPS (Protocol and Parameters Selection)
• Features Short Circuit Protection
• Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (through wrapper on top of PC/SC)

Related Documents

Primary Applications

• e-Government
• Banking & Payment
• Network Security
• Access Control
• Public Key Infrastructure
• e-Purse & Loyalty
