باندل گیگا GA-M61SME به همراه CPU دو هسته ای و فن

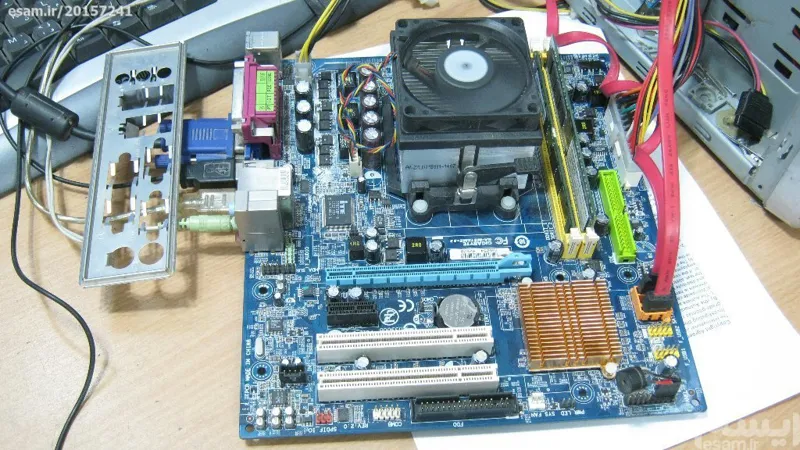

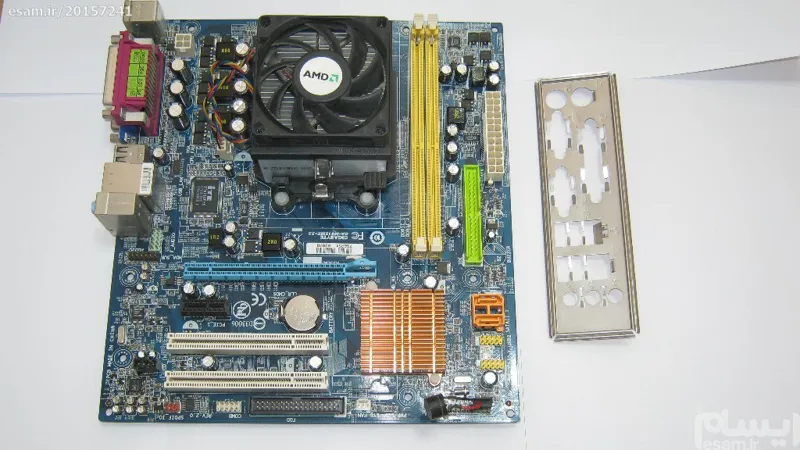

باندل گیگا GA-M61SME-S2 به همراه CPU دو هسته ای و فن  و پنل پشت

سالم تست کامل و نصب نصب ویندوز روش انجام شده.

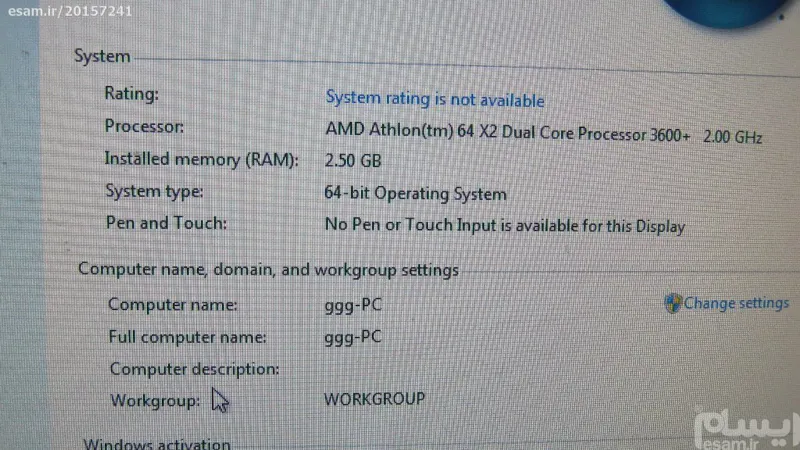

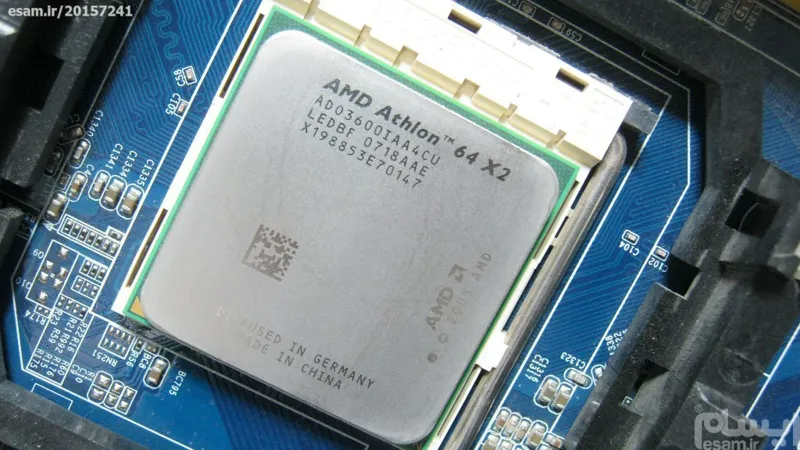

مشخصات سی پی یو تو تصویر هست

دارای گرافیک آنبرد.

مطابق تصویر.

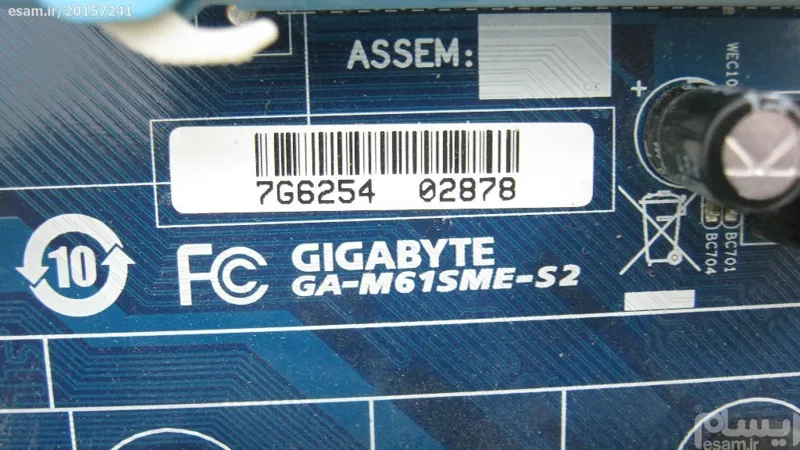

GA-M61SME-S2

3. GA-M61SME-S2

• پردازنده
  1. Support for Socket AM2+/ AM2 processors: AMD PhenomFX processor/ AMD Phenom processor/ AMD Athlon 64 FX processor/AMD Athlon 64 X2 Dual-Core processor/AMD Athlon 64 processor/AMD Sempron processor.

  (Note) If you install AMD AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec however, the frequency of AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
• چیپ ست
  1. NVIDIA^® GeForce 6100 / nForce 405 chipset
  2. Super I/O: ITE IT8716 chip
  3. Integrated Peripherals
     1. Realtek RTL8201 phy
     2. Realtek ALC883 Audio Codec
• حافظه
  1. 2 DDR2 DIMM memory slots (supports up to 8GB memory)(Note 1)
  2. Supports dual channel DDR2 800/667/533/400 DIMMs
  3. Supports 1.8V DDR2 DIMMs

  (Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB Windows 64-bit operating system doesnt have such limitation.
• سوکت های اضافه
  1. 1 PCI Express x 16 slot (Note 2)
  2. 1 PCI Express x 1 slot
  3. 2 PCI slots

  (Note 2) The GA-M61SME-S2 supports up to PCI Express x8 mode. (please refer to the VGA cards support list)
• رابط های ورودی/خروجی داخلی
  1. 1 24-pin ATX power connector
  2. 1 4-pin ATX 12V power connector
  3. 1 floppy connector
  4. 1 IDE connectors
  5. 2 SATA 3Gb/s connectors
  6. 1 CPU fan connector
  7. 1 system fan connector
  8. 1 front panel connector
  9. 1 front audio connector
  10. 1 CD In connector
  11. 1 COMB connector
  12. 1 Power LED connector
  13. 2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
  14. 1 SPDIF In/Out connector
  15. 1 Chassis Intrusion connector
  16. 1 HDA_SUR connector
• رابط های پنل پشتی
  1. 1 PS/2 keyboard port
  2. 1 PS/2 mouse port
  3. 1 parallel port
  4. 1 COMA port
  5. 1 VGA port
  6. 4 USB 2.0/1.1 ports
  7. 1 RJ-45 port
  8. 3 audio jacks (Line In / Line Out / MIC In)
• نظارت بر روی سخت افزار
  1. System voltage detection
  2. CPU / System temperature detection
  3. CPU / System fan speed detection
  4. CPU / System warning temperature
  5. CPU / System fan failure warning
  6. Supports CPU Smart Fan function(Note3)

  (Note 3) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
• بایوس
  1. 1 4Mbit flash ROM
  2. Use of licensed AWARD BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
• فاکتور فرم
  Micro ATX form factor 24.4cm x 22.5cm
• ویژگی های دیگر
  1. Supports esamBIOS
  2. Supports Download Center
  3. Supports Q-Flash
  4. Supports EasyTune(Note 4)
  5. Supports Xpress Install
  6. Supports Xpress Recovery2
  7. Supports Xpress BIOS Rescue

  (Note 4) EasyTune functions may vary depending on different motherboards.
• منبع تغذیه
  ATX power connector and ATX 12V connector
