Adaptec RAID 81605ZQ with maxCache Components

Operating System



Microsoft Windows
Red Hat Linux
SUSE Linux
Fedora
Debian Linux
Ubuntu Linux
Sun Solaris
FreeBSD
VMware ESXi

For a detailed list see ASK Answer ID 17318.

Benefits



Ideal for 12Gb/s performance-hungry server and workstations platforms, without compromising proven Adaptec reliability

Customer Needs



High I/O transaction and high band processing solutions that reduce energy consumption and maintenance costs.

Key RAID Features



 maxCache SSD Caching software
 Flexible Configuration: HBA Mode & Auto Volume Mode for automatic deployment
 Optimized Disk Utilization (Multiple Arrays per disk)
 Supported RAID levels: 0, 1, 1E, 5, 6, 10, 50, 60
 Supports up to 256 SAS or SATA devices using SAS expanders
 Support for native 4K sector SAS and SATA devices in addition to 512byte sector devices
 Hybrid RAID 1 & 10
 Quick initialization
 Online Capacity Expansion
 Performance modes: Dynamic, OLTP & Big Block ByPass
 Copyback Hot Spare
 Dynamic caching algorithm
 Native Command Queuing (NCQ)
 Background initialization
 Hot-plug drive support
 RAID Level Migration
 Hot spares - global, dedicated, and pooled
 Automatic/manual rebuild of hot spares
 SES and SAF-TE enclosure management
 Configurable stripe size
 S.M.A.R.T. support
 Multiple arrays per disk drive
 Dynamic sector repair
 Staggered drive spin-up
 Bootable array support
 Support for Tape Devices, Autoloaders
 MSI-X support for all device driver for all supported Operating Systems
 Secure boot support for the uEFI host bios

Management Utilities



Software
 Adaptec maxView Storage Manager
 Web based GUI Management Utility
 OS Support: Windows, Linux, Solaris VMware
 Remote configuration, monitoring & notification
 Remote firmware updates
 SMI-S Support
 SMTP

ARCCONF
 Command Line Interface
 SMI-S support for VMware

Adaptec BIOS Configuration Utility (CTRL+A)
 BIOS level configuration utility
 Flashable BIOS support

Adaptec uEFI BIOS Configuration Utility
 HII based confi guration utility
 Flashable BIOS support

Data Transfer Rate



12Gb/s per port

Bus System Interface



8-lane PCIe Gen3

Form Factor



MD2 Low Profile

Cache Memory



1024MB

Connector Configuration



Four internal mini SAS HD (SFF-8643)

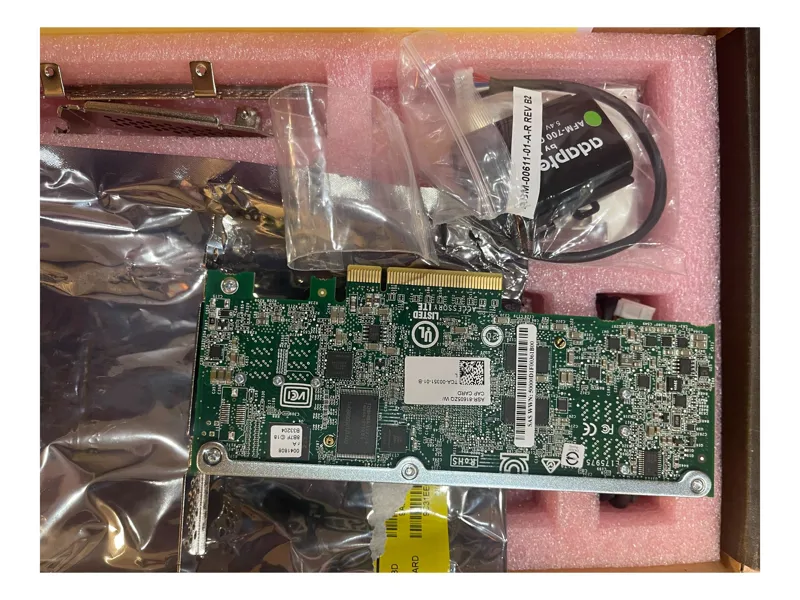

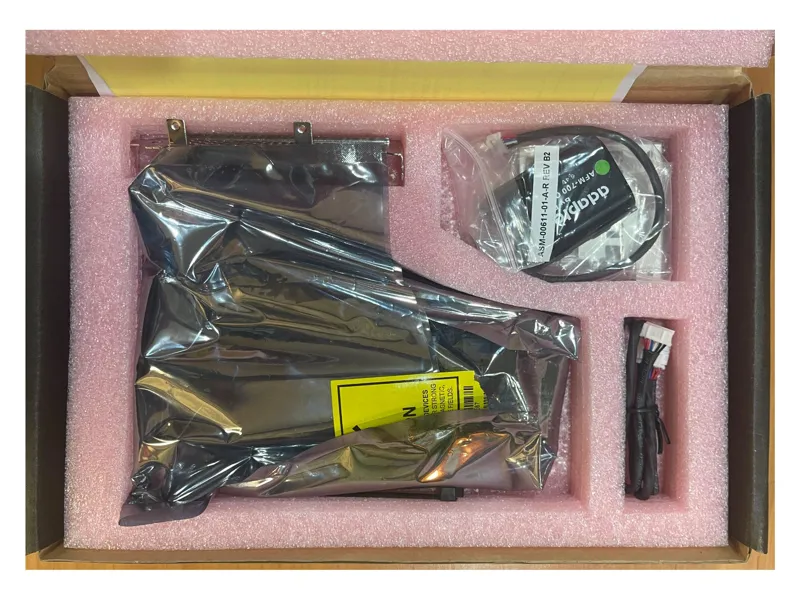

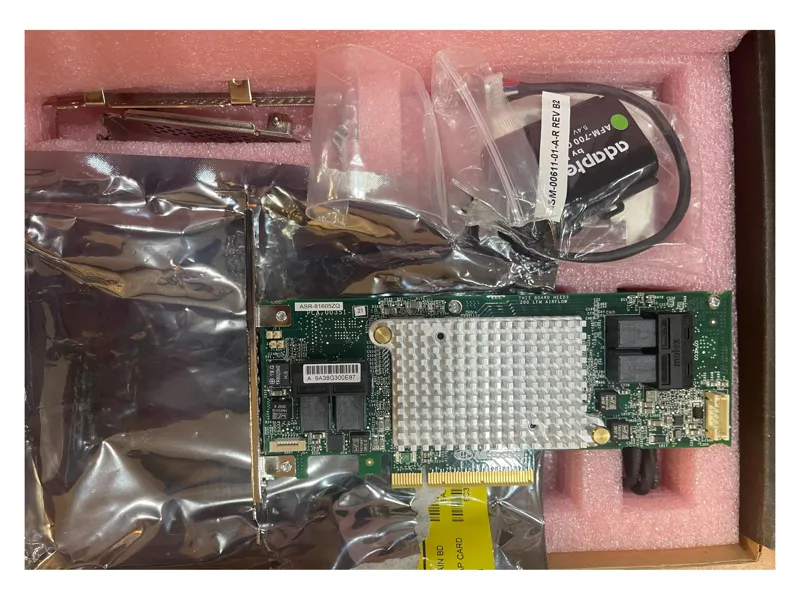

Package Contents



 Adaptec RAID 81605ZQ adapter
 Additional low profile vented bracket


Physical Size



2.535H x 6.6L (64mm x 167mm)

Operating Temperature



0°C to 55°C* (with 200 LFM airflow)
Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM). * Ambient temperature measured 1 away from the RAID processor

Operating Voltage



1.0A esam 3.3VDC 1.1A esam 12VDC

Regulatory Certification



CE, FCC, UL, C-tick, VCCI, KCC, CNS

Environmental Compliance



RoHS

Mean Time Before Failure (MTBF)



>700,000 hours at 40°C
