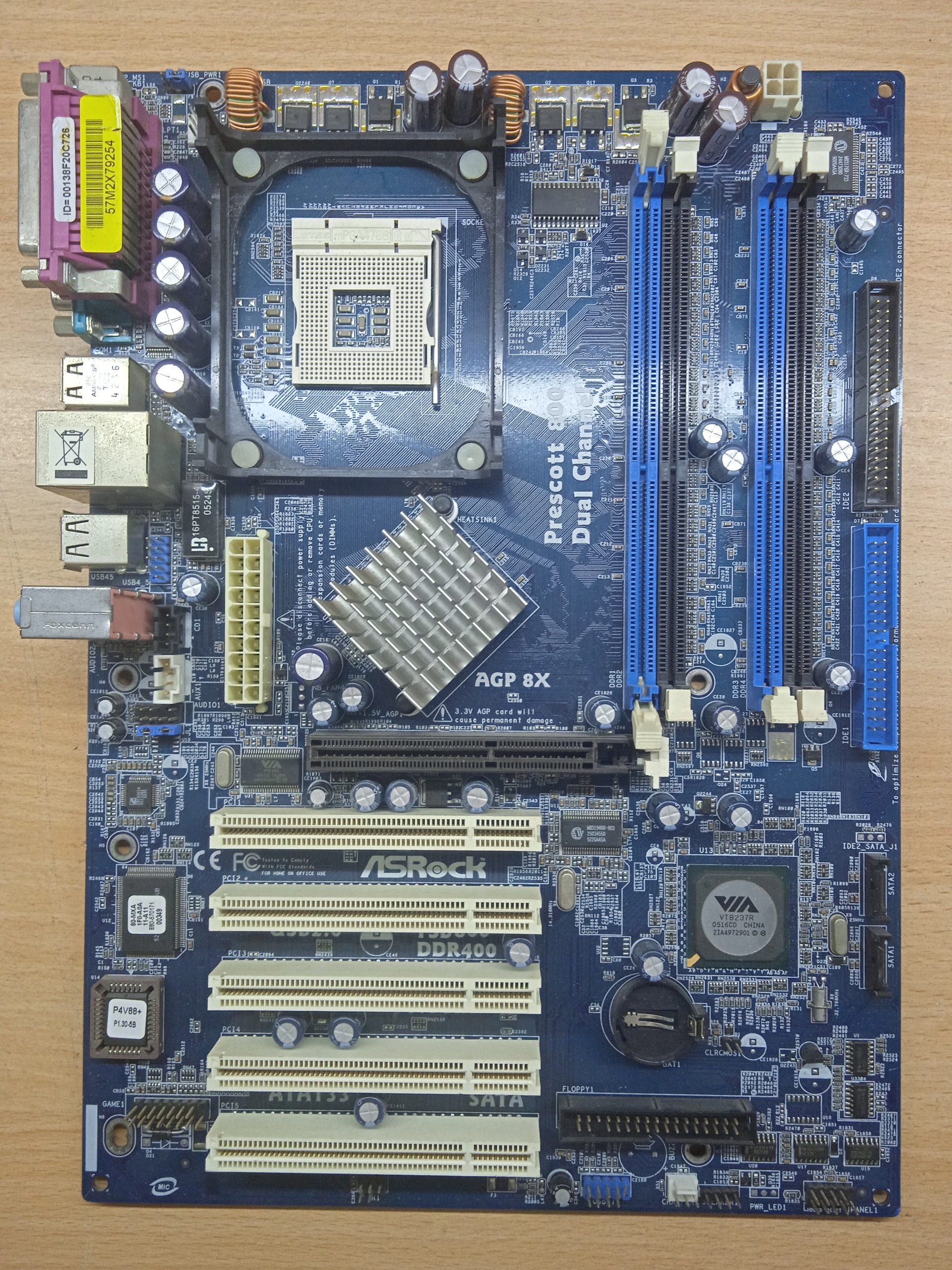

مادربرد ASROCK مدل Prescott 800

*کاملا سالم و تست شده

*سوکت 478 - رم  ddr 400 MHZ

*********************************************************************************************************

P4V88

• Socket 478 for Intel® P4 processor
• VIA PT880 chipset
• Supports FSB800MHz processor, Prescott Ready and H-T Technology
• Supports DDR400 and Dual Channel Technology
• Hybrid Booster - ASRock safe overclocking
• SATA 1.5Gb/s, RAID 0, 1, JBOD, SATA HDD_Hotplug
• AGP8X, 5.1 Channel Audio, 10/100 Ethernet LAN
• ASRock I/O Plus: 6 ready-to-use USB 2.0 ports
• *******************************************************************************

CPU

- Socket 478 for Intel® Pentium® 4 / Celeron® processor
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Prescott support

Chipset

- Northbridge: VIA PT880
- Southebridge: VIA 8237

Memory

- Dual Channel DDR memory technology
- Supports DDR400/333/266 non-ECC, un-buffered memory
- DIMM slots: 4
- Max. capacity of system memory: 4GB*


*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP.

BIOS

- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP

Graphics

- n/a

Audio

- CMedia CMI9761 6 channel AC97 audio codec

LAN

- VIA 6103 10/100 Ethernet LAN PHY
- 802.3u, WOL supported
- Supports PXE

Slots

- 1 x AGP8X/4X slot, 1.5V
- 5 x PCI slots( PCI 2.2 compliance)

Connector

- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA HDD_Hotplug
- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- IDE LED connector
- CD/AUX audio in header
- Front panel audio connector
- 2 x USB 2.0 port pin header
- 1 x Game/MIDI port pin header

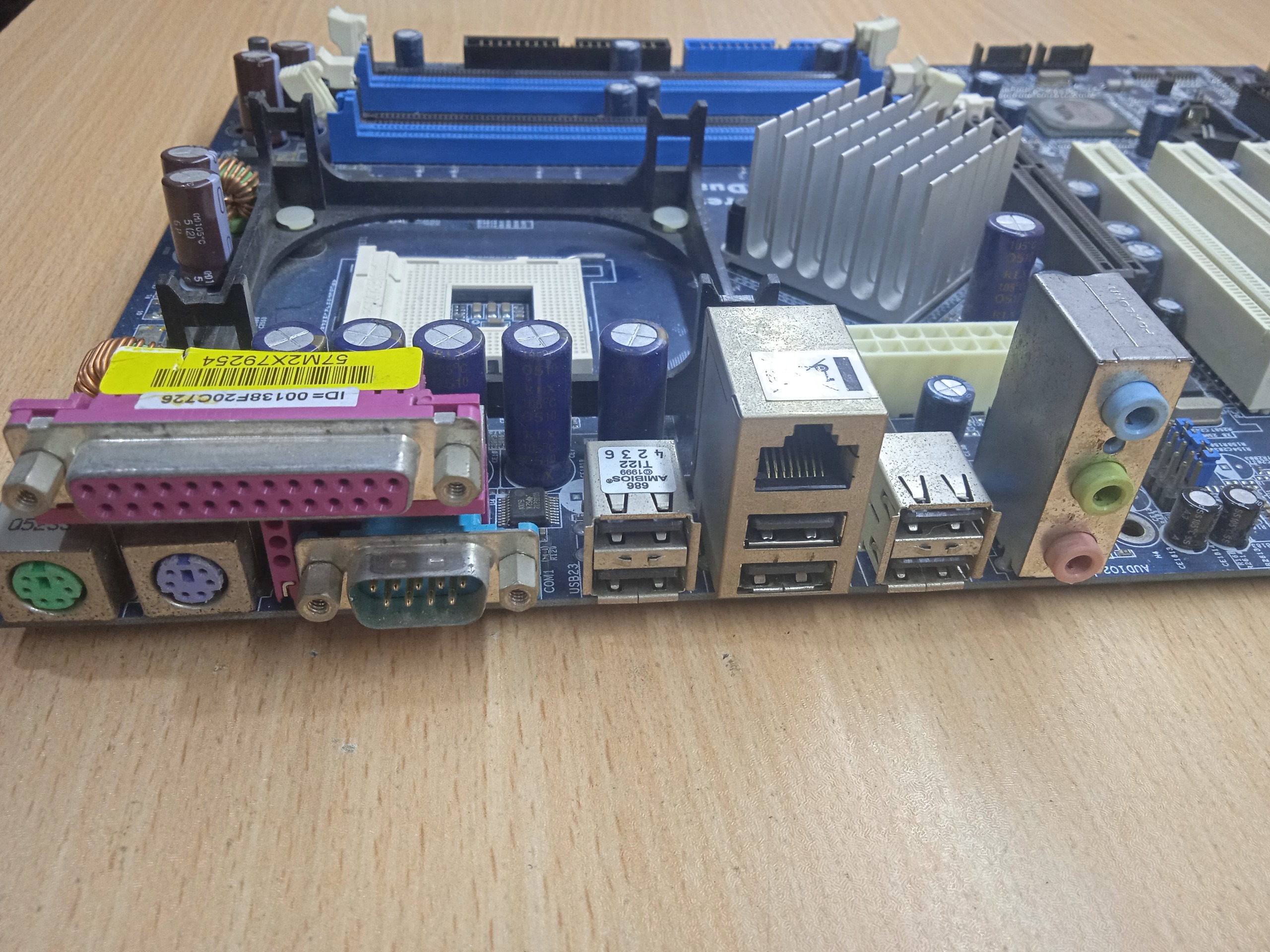

Rear Panel I/O

ASRock I/O Plus
- 6 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x Serial port (COM1)
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x Audio ports ( Line In/Out, Mic In)

Unique Feature

Hybrid Booster:
- CPU Frequency Stepless control
- ASRock U-COP
- Boot Failure Guard (B.F.G)

Accessories

- I/O shield
- Floppy/ATA 100 Cables
- 1 x SATA Data Cable
- 1 x SATA 1-to-1 Power Cable

Form Factor

- ATX, 305mm x 218mm

OS

- Microsoft Windows® 98SE/ME/2000/XP compliant

Certifications

- FCC, CE
