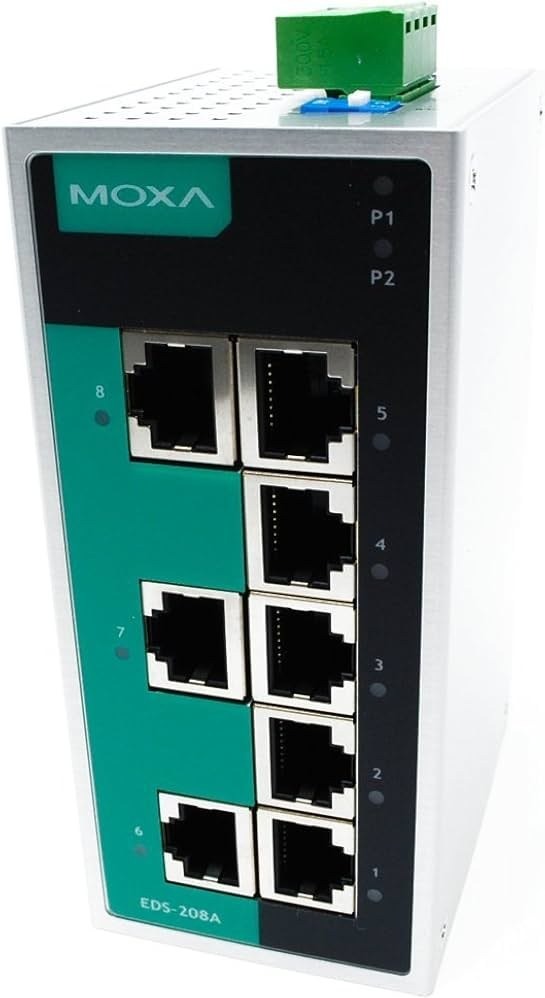

سوئیچ صنعتی مگزا 208 MOXA 208 A

Switch Properties

MAC Table Size 2 K
Packet Buffer Size 768 kbits
Processing Type Store and Forward
Power Parameters
Connection 1 removable 4-contact terminal block(s)
Input Current EDS-208A/208A-T, EDS-208A-M-SC/M-ST/S-SC Models: 0.11 A esam 24 VDC
EDS-208A-MM-SC/MM-ST/SS-SC Models: 0.15 A esam 24 VDC
Input Voltage 12/24/48 VDC
Redundant dual inputs
Operating Voltage 9.6 to 60 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
DIP Switch Configuration
Ethernet Interface Broadcast storm protection
Physical Characteristics
Housing Aluminum
IP Rating IP30
Dimensions 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)
