ترانزیستور BSR18 SMD پک 50 عددی

ترانزیستور PHILIPS BSR18  PNP Transistors

40V, 0.2A, <70/300ns

Type Designator: BSR18

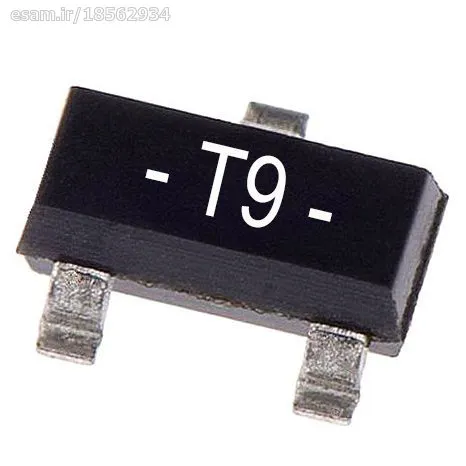

SMD Transistor Code: T9_T9p

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.2 W

Maximum Collector-Base Voltage |Vcb|: 40 V

Maximum Collector-Emitter Voltage |Vce|: 40 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 200 MHz

Collector Capacitance (Cc): 4.5 pF

Forward Current Transfer Ratio (hFE), MIN: 50

Noise Figure, dB: -

Package: SOT23
