مادربرد گیگابایت خاص H470 HD3

مادربرد بینظیر و خاص گیگابایت

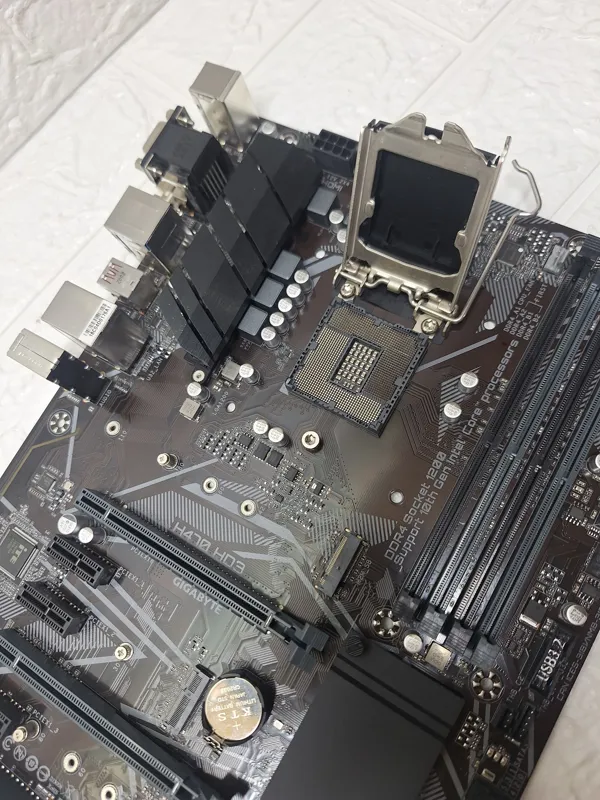

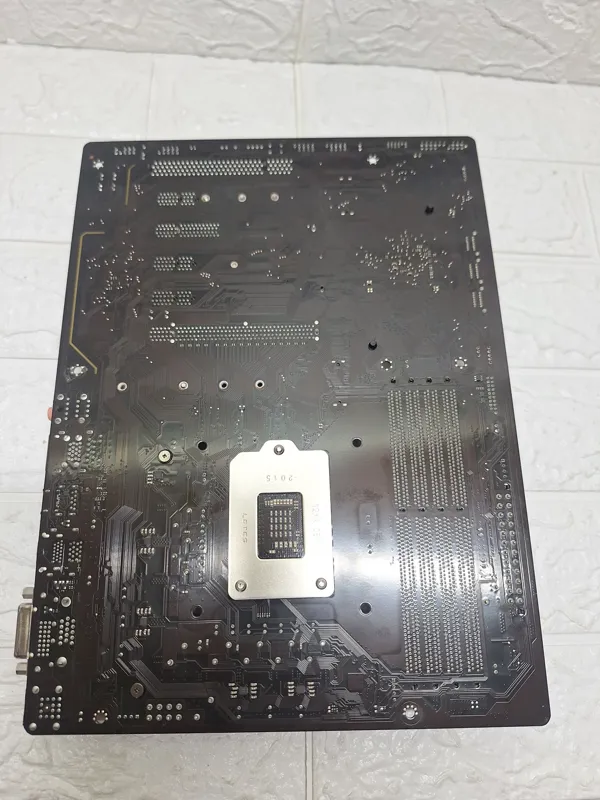

تمیز مطابق تصاویر

بدون پنل و جعبه

فقط مادربرد ارسال می شود

1. Support for 10th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

1. Intel® H470 Express Chipset
2. Intel® Core i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. Intel® Core i5/i3/Pentium®/Celeron® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200esam60 Hz
   * D-Sub port, supported by 10th Generation processors only.
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200esam60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160esam30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTEs website for details on configuring the audio software.
4. Support for S/PDIF Out
5. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
6. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
7. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
8. 3 x PCI Express x1 slots
9. 1 x PCI slot
10. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)

Supports up to ASPM L1.2 power management protocols.

1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
3. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
4. 6 x SATA 6Gb/s connectors
5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
6. Intel® Optane Memory Ready
   * System Acceleration with Intel® Optane Memory enabled on the M2M_SB connector only.

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

Chipset:

1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4. 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers
2. 1 x 24-pin ATX main power connector
3. 1 x 8-pin ATX 12V power connector
4. 1 x CPU fan header
5. 3 x system fan headers
6. 1 x addressable LED strip header
7. 1 x RGB LED strip header
8. 6 x SATA 6Gb/s connectors
9. 2 x M.2 Socket 3 connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x S/PDIF Out header
13. 1 x USB 3.2 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 2 x Thunderbolt add-in card connectors
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 1 x serial port header
18. 1 x Clear CMOS jumper
19. 1 x Q-Flash Plus button

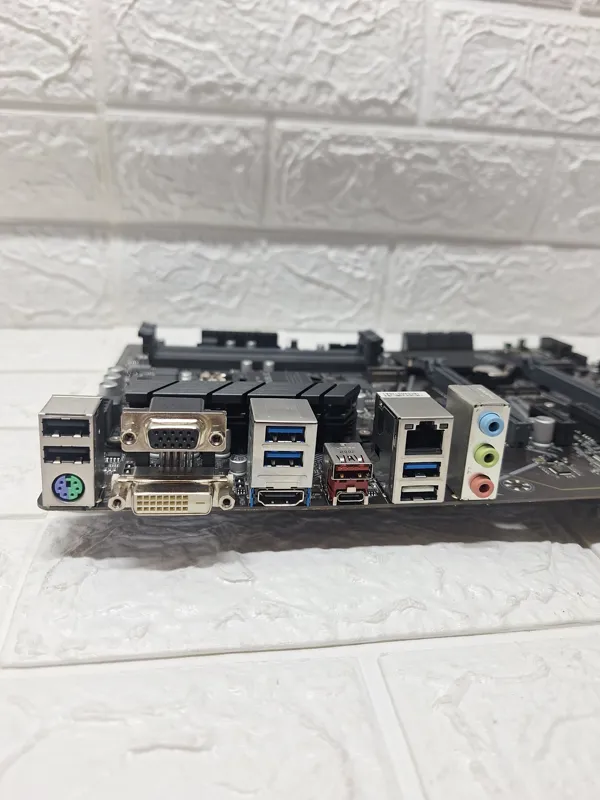

20. 1 x PS/2 keyboard/mouse port
21. 1 x D-Sub port
22. 1 x DVI-D port
23. 1 x HDMI port
24. 1 x USB Type-C port, with USB 3.2 Gen 2 support
25. 1 x USB 3.2 Gen 2 Type-A port (red)
26. 4 x USB 3.2 Gen 1 ports
27. 2 x USB 2.0/1.1 ports
28. 1 x RJ-45 port
29. 3 x audio jacks
30. iTE® I/O Controller Chip
31. Voltage detection
32. Temperature detection
33. Fan speed detection
34. Overheating warning
35. Fan fail warning
36. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
37. 1 x 256 Mbit flash
38. Use of licensed AMI UEFI BIOS
39. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
40. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    esamBIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
41. Support for Q-Flash Plus
42. Support for Q-Flash
43. Support for Xpress Install
44. Norton® Internet Security (OEM version)
45. cFosSpeed
46. Support for Windows 10 64-bit

Operating System



Bundled Software



Unique Features



BIOS



H/W Monitoring



I/O Controller



Back Panel Connectors



Internal I/O Connectors



USB



Storage Interface



Multi-Graphics Technology



Expansion Slots



LAN



Audio



Onboard Graphics



Memory



Chipset



CPU
