میگر دیجیتال مدل GT-5307A

میگر دیجیتال مدل GT-5307A

، میگر 1000 ولت مدل GT5307-A از کمپانی بنتک میباشد.بازه تست این مدل تا 2000 میکرواهم میباشد.محبوبیت این دستگاه نسبت به سایر برند ها این است که نسبت به قیمت مقرون به صرفه خود کارایی نسبتا حرفه ای دارد

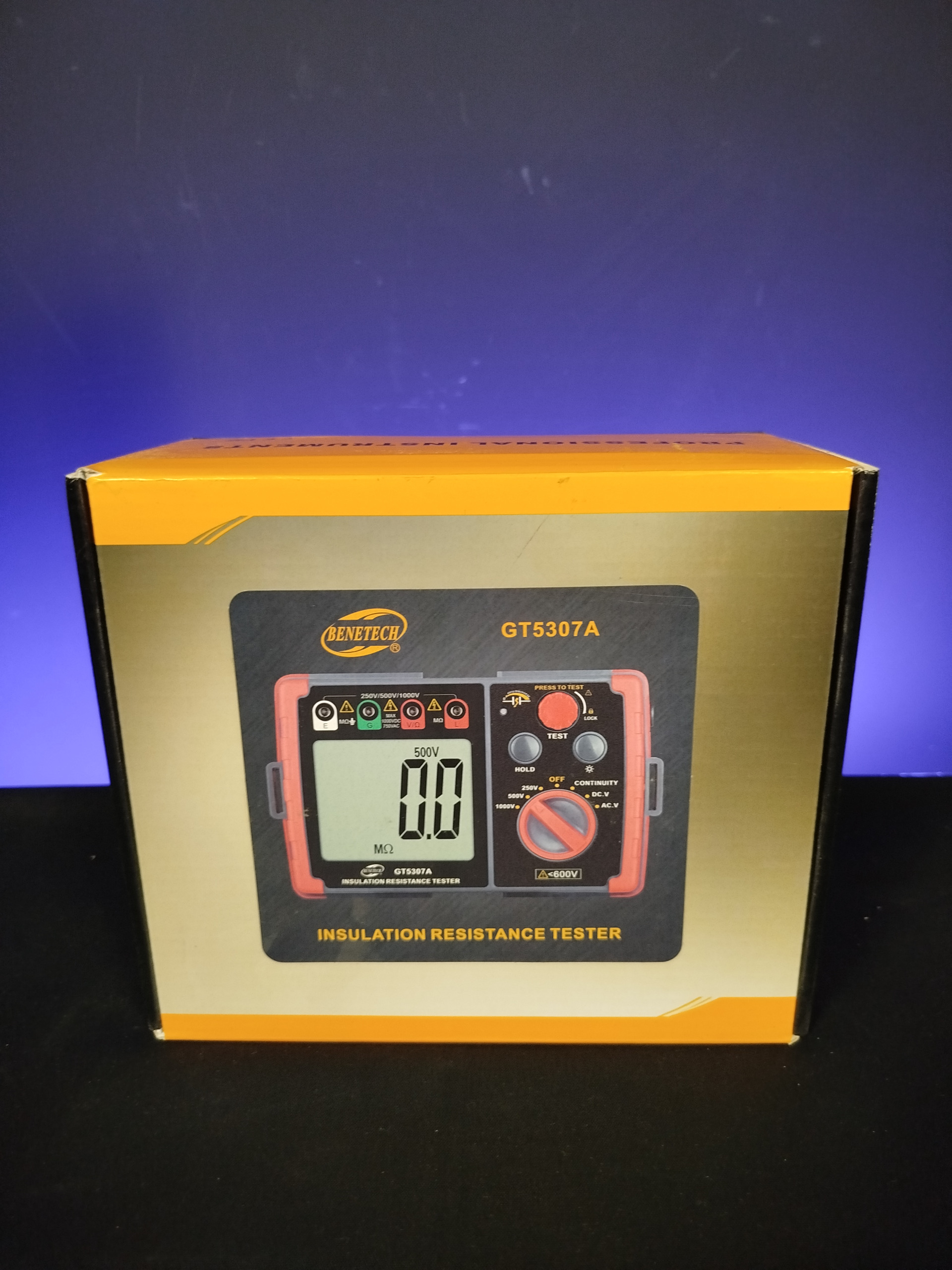

Insulation/Continuity Tester GT5307A



This instrument applies DC voltage converter with low loss, high variation ratio, and inductive energy storage, which can convert 9V voltage to 250V/1000V DC voltage it applies digital electric bridge to measure insulation resistance it has functional characteristics of portability, wide measuring range, backlight display, and data holding it can measure electric supply as well. When using straps, the operator can operate the instrument with both hands. The instrument has a fashionable appearance and stable performance. It is suitable for measuring electrical machinery, cable, electromagnetically equipment, telecom equipment, electric power facilities and other insulation resistance.

1.Insulation Resistance Measurement

2.Alternating Current (AC) Measurement

3.Direct Current (DC) Measurement

4.Small Resistance Measurement

5.Measured Data Holding

6.Low Battery Indication

7.Large LCD digital display

8.External Direct Current (DC) power supply DC9V 1.5A

9.Over-limit Alarm

10.Red Alarm Light, Buzzer Alarm

11.High Voltage Alarm



(1)Accuracy:±(a%+least significant digit)

(2)Environment temperature to ensure accuracy: 23±5

(3)Relative humidity:75%

(4)Calibration guarantee period: 1 year since the manufacture date

(5)Voltage input impedance: 1MΩ

(6)AC voltage frequency response: 50~200Hz
