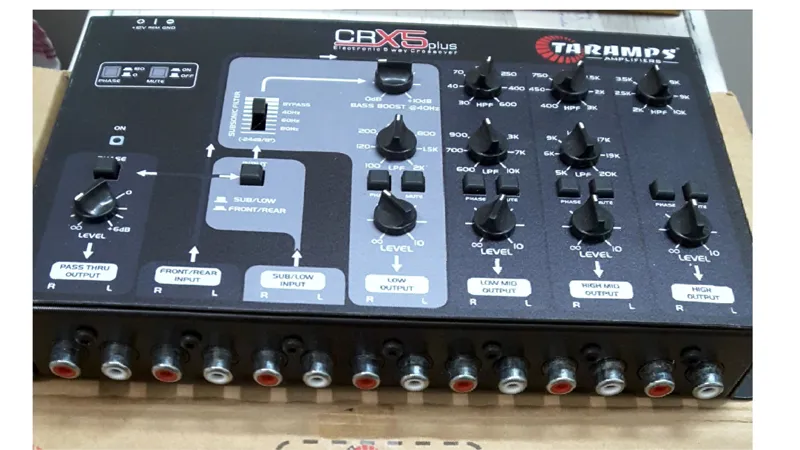

کراس اور پنج راهه اکتیو تارامپ Taramp crx-5 plus

یک عدد کراس اور 4way اکتیو ـ 4 کانال باضافه ساب

کاملا سالم و نو، چون تست شده و حالت آکبند ندارد نوشتم در حد نو

Number of Channels

4 + 1 Pass Thru

Output impedance

470K Ohms

Maximum input level

R/L: 4.57V RMS (.4 dBu)

Maximum output level

R/L: 9.3V RMS (.6 dBu)
Pass Thru R/L: 9.3V RMS (.6 dBu)

Total Harmonic Distortion

<0.01% ~1KHz

Crosstalk (separation between channels)

85dB

protection system

Polarity Inversion

Via Low

Low Way (R+L) Mono

Subsonic Filter: Selectable (Bypass/40/60/80Hz) (-24dB/8ª butterworth)
Low Pass Filter: Variable 100Hz ~ 2KHz (-12dB/8ª Linkwitz-Riley)
Bass Boost: Variable 0 ~ dB (40Hz)
Selectable Phase: 0/180 degrees
Variable Level: -infinite ~ dB

Via Low Mid

Mid Low Way (R+L) Mono

High Pass Filter: Variable 30Hz ~ 600Hz (-12dB/8ª Linkwitz-Riley)
Low Pass Filter: Variable 600Hz ~ 10KHz (-12dB/8ª Linkwitz-Riley)
Selectable Phase: 0/180 degrees
Variable Level: -infinite ~ dB

Via High Mid

Mid High Way (R and L) Stereo

High Pass Filter: Variable 400Hz ~ 3KHz (-12dB/8ª Linkwitz-Riley)
Low Pass Filter: Variable 5KHz ~ 20KHz (-12dB/8ª Linkwitz-Riley)
Selectable Phase: 0/180 degrees
Variable Level: -infinite ~ dB

Via High

High Way (R and L) Stereo

High Pass Filter: Variable 2KHz ~ 10KHz (-12dB/8ª Linkwitz-Riley)
Selectable Phase: 0/180 degrees
Variable Level: -infinite ~ dB

POWER SUPPLY VOLTAGE (POWER)

10.5 ~ 16VDC

Dimensions (W x H x D)

9.37 x 1.57 x 5.71 (238 x 40 x 145 mm)

Weight

1.54lb (0.70 Kg)

EAN

7898556841153
