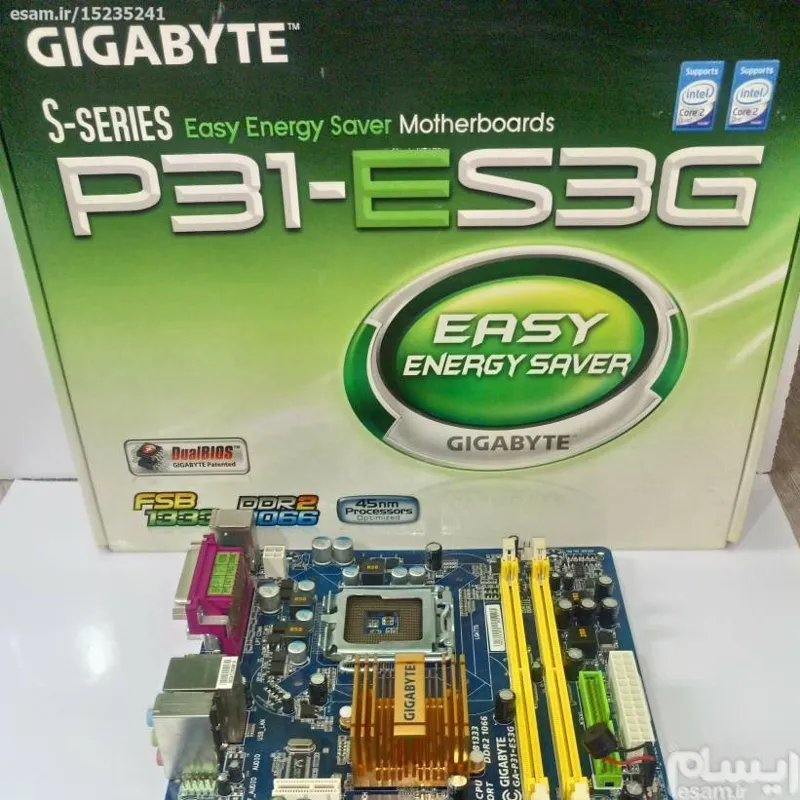

مادربرد گیگابایت DDR2 اینتل مدل GA-P31-ES3G

بسیار تمیز، تست شده

همراه کارتن اش

پشتیبانی از پردازندهای اینتل

پشتیبانی از cpu چهار هسته ای

Intel® Core 2 Extreme processor/ Intel® Core 2 Quad processor/ Intel® Core 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package

شرکت سازنده گیگابایت - Gigabyte

برند پردازنده قابل پشتیبانی Intel

تعداد خشاب های رم 2X Dual Channel

نوع رم (حافظه) DDR2

لینک توضیحات مادبرد

https://www.gigabyte.com/persian/Motherboard/GA-P31-ES3G-rev-1x#sp

پردازنده

Support for an Intel® Core 2 Extreme processor/ Intel® Core 2 Quad processor/ Intel® Core 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package

L2 cache varies with CPU

درگاه FSB

1600(O.C.)/1333/1066/800 MHz FSB

چیپ ست

North Bridge: Intel® P31/G31 Express

South Bridge: Intel® ICH7

حافظه

2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory

Dual channel memory architecture

Support for DDR2 1066/800/667 MHz memory modules

* Please refer "Memory Support List" for memory support information.

صوتی

Realtek ALC888 codec

High Definition Audio

2/4/5.1-channel

Support for S/PDIF Out

Support for CD In

شبکه

RTL 8111C chip (10/100/1000 Mbit)

سوکت های اضافه

1 x PCI Express x16 slot

3 x PCI Express x1 slots

3 x PCI slots

رابط ذخیره سازی

South Bridge:

1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

iTE IT8718 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Integrated in the South Bridge

Up to 8 USB 2.0/1.1 ports (4 on the back connected to the internal USB headers)

رابط های ورودی/خروجی داخلی

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x chassis intrusion header

1 x power LED header

رابط های پنل پشتی

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x parallel port

1 x serial port

1 x coaxial S/PDIF Out connector

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

کنترلر ورودی/خروجی

iTE IT8718 chip

نظارت بر روی سخت افزار

System voltage detection

CPU temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU fan speed control

بایوس

1 x 4 Mbit flash

Use of licensed AWARD BIOS

PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

ویژگی های خاص

Support for @BIOS

Support for Download Center

Support for Q-Flash

Support for EasyTune

Support for Xpress Install

Support for Xpress Recovery2

Support for Dual BIOS

Support for Easy Energy Saver
